433
Corrective Maintenance
Lower Fron
t Panel
8/9/07
ZM400/ZM600 Maintenance Manual
14207L-001 A
Inst
all the New Lower Front Panel
1.
See
Figure
289
. Hook the lower tabs o
f the new lower front
panel over the
front of the
base.

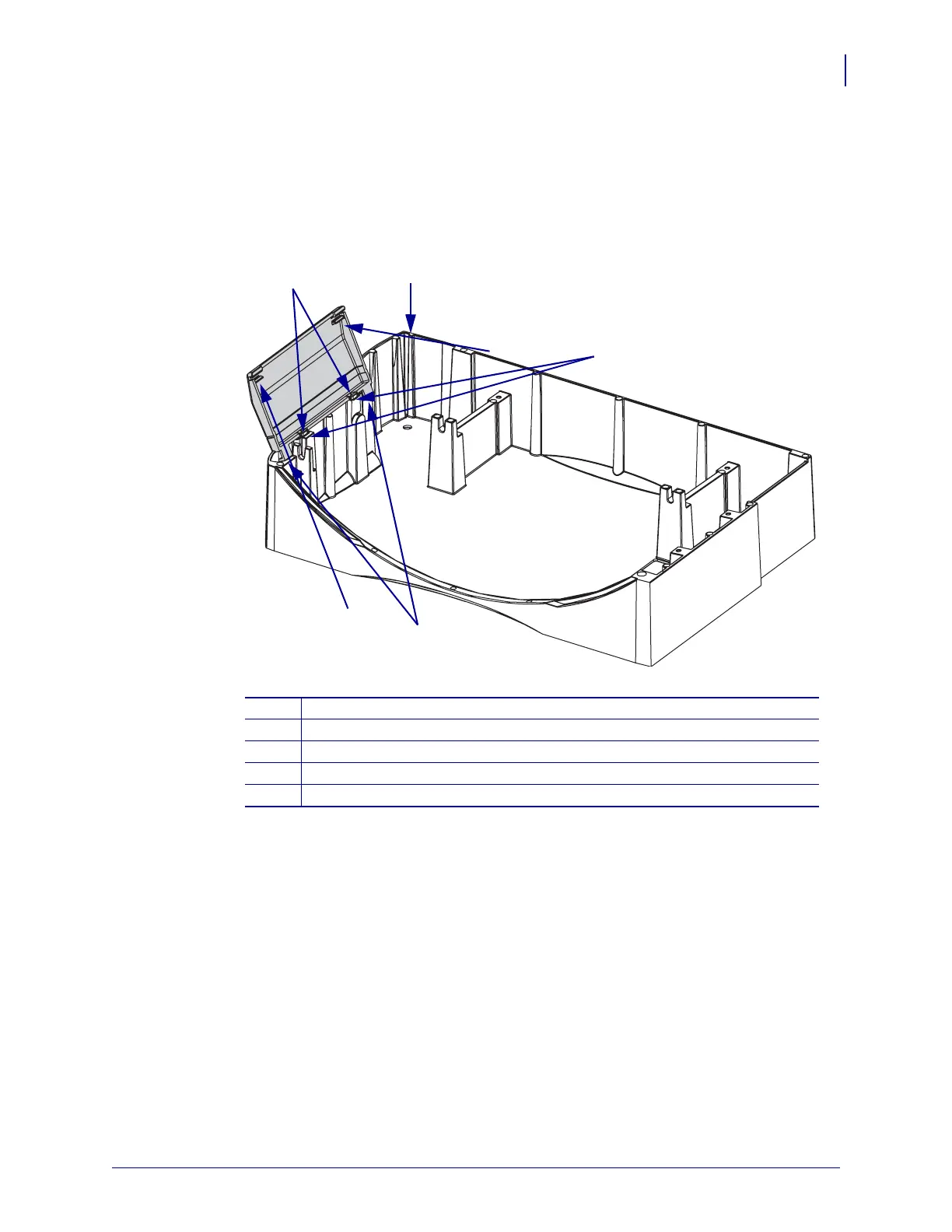

Figure 289 • Hook the Lower T
abs
2.
Align the two notches in
the new lower front
panel with the two
guideposts o
n the base.
1
Notches (2)
2
Base
3
Upper tabs (2)
4
Guide posts (2)
5
Lower tabs (2)
1
4
2
5
3
2
