Corrective Maintenance
Magnetic Printhead Latch
212
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Reinstall the Electronics Cover
1. See Figure 83. Install the electronics cover by aligning it and sliding down, ensuring the
lower flanges are inside the base and the upper flanges are between the main frame and the
media door.

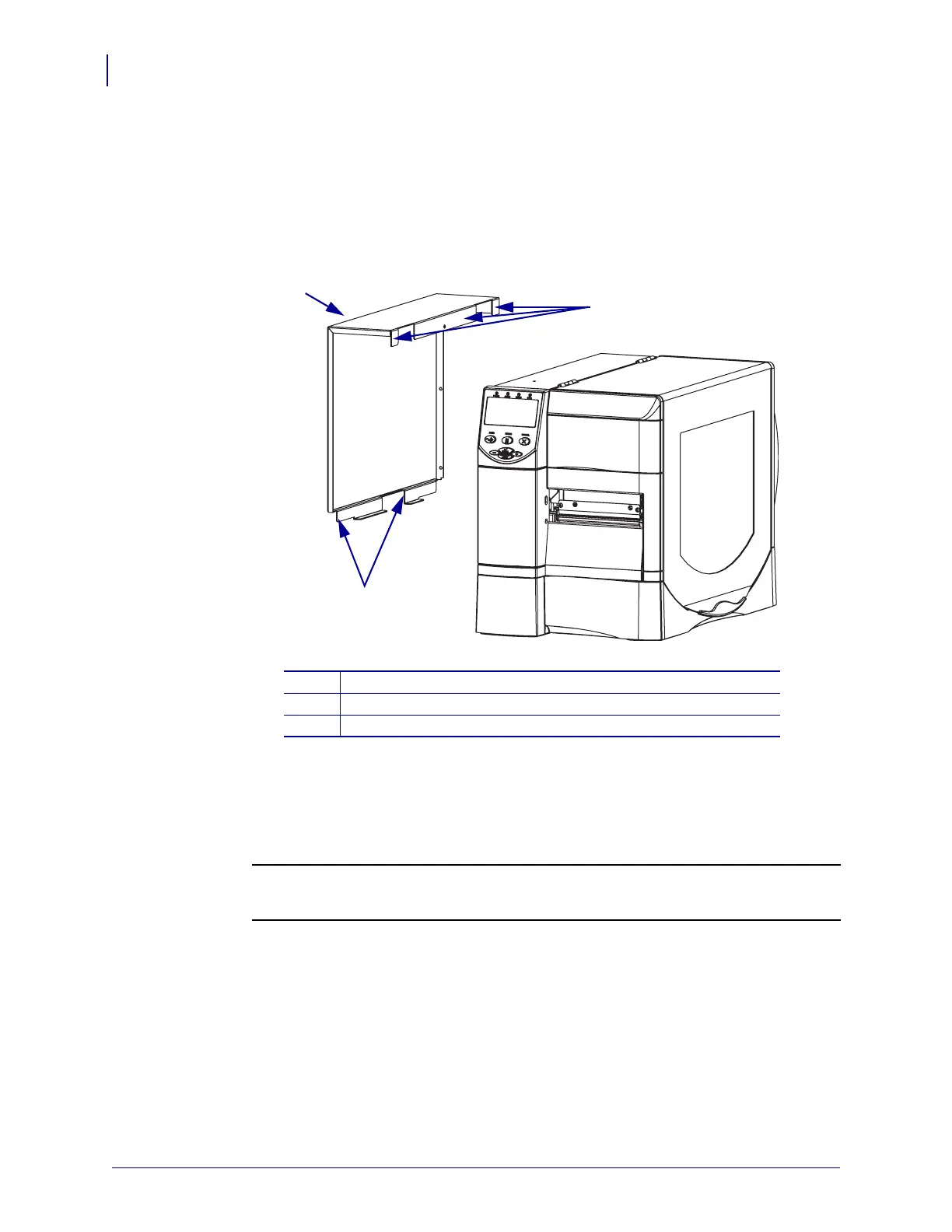

Figure 83 • Locate the Upper and Lower Flanges
2. See Figure 78 on page 208. Install the four mounting screws.
3. See Figure 77 on page 207. Open the media door.
4. Install the electronics cover mounting screw and lock washer.
5.
6.
Reconnect the AC power cord and data cables
7. Turn on (l) the printer.
1
Electronics cover
2
Upper flanges (3)
3
Lower flanges (2)
2
1
3
Caution • When you are loading media or ribbon, remove all jewelry that could come
into contact with the printhead or other printer parts.
Reinstall the media and ribbon.
