Zebra ZM400 Series User Manual

145
Corrective Maintenance
Printhead Assembly
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Remove the Old Printhead
1.
2.
3.
See Figure 26. Take note of the position of the pressure dials and then rotate the printhead
pressure dials to the #1 position.

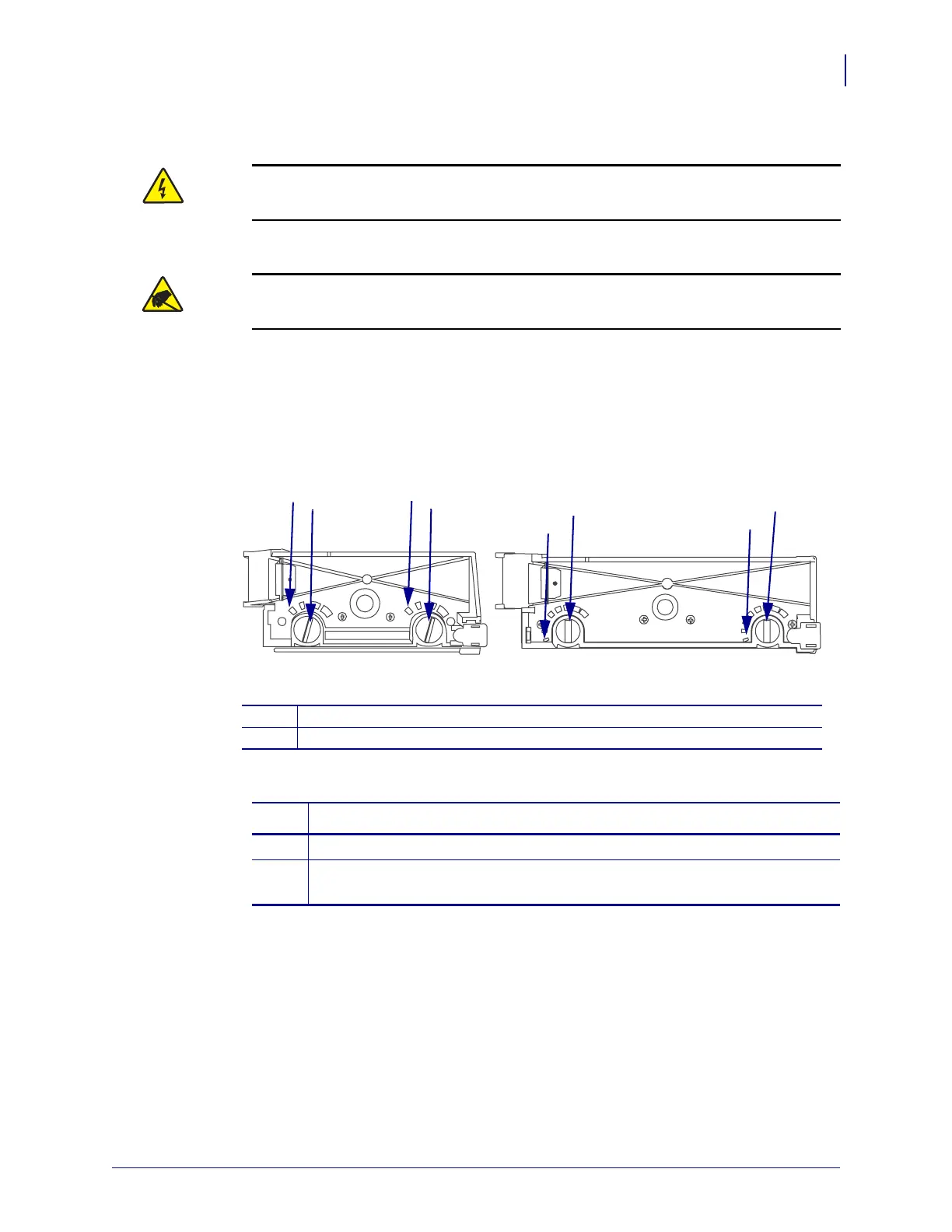

Figure 26 •
Locate the Printhead Pressure Dials
4. Do you have a cutter option installed?
Caution • Turn off (O) the printer and disconnect it from the power source before
performing the following procedure.
Open the media door and remove the media and ribbon.
Caution • Observe proper electrostatic safety precautions when handling
static-sensitive components such as circuit boards and printheads.
Connect yourself to an antistatic device.
1
Position #1
2
Pressure dial
If… Then…
No Continue with step 5.
Yes You may find it easier to replace the printhead with the cutter assembly
removed. Go to Remove the Cutter Assembly on page 151.
1
2
1
2
1
2
1
2
ZM400 ZM600

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
