Zebra ZM400 Series

299
Corrective Maintenance
Printhead Conversion
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Remove the Cutter Assembly
1. See Figure 163. Unlatch the printhead and turn the latch assembly clockwise to access the
cutter mounting screw.
2.

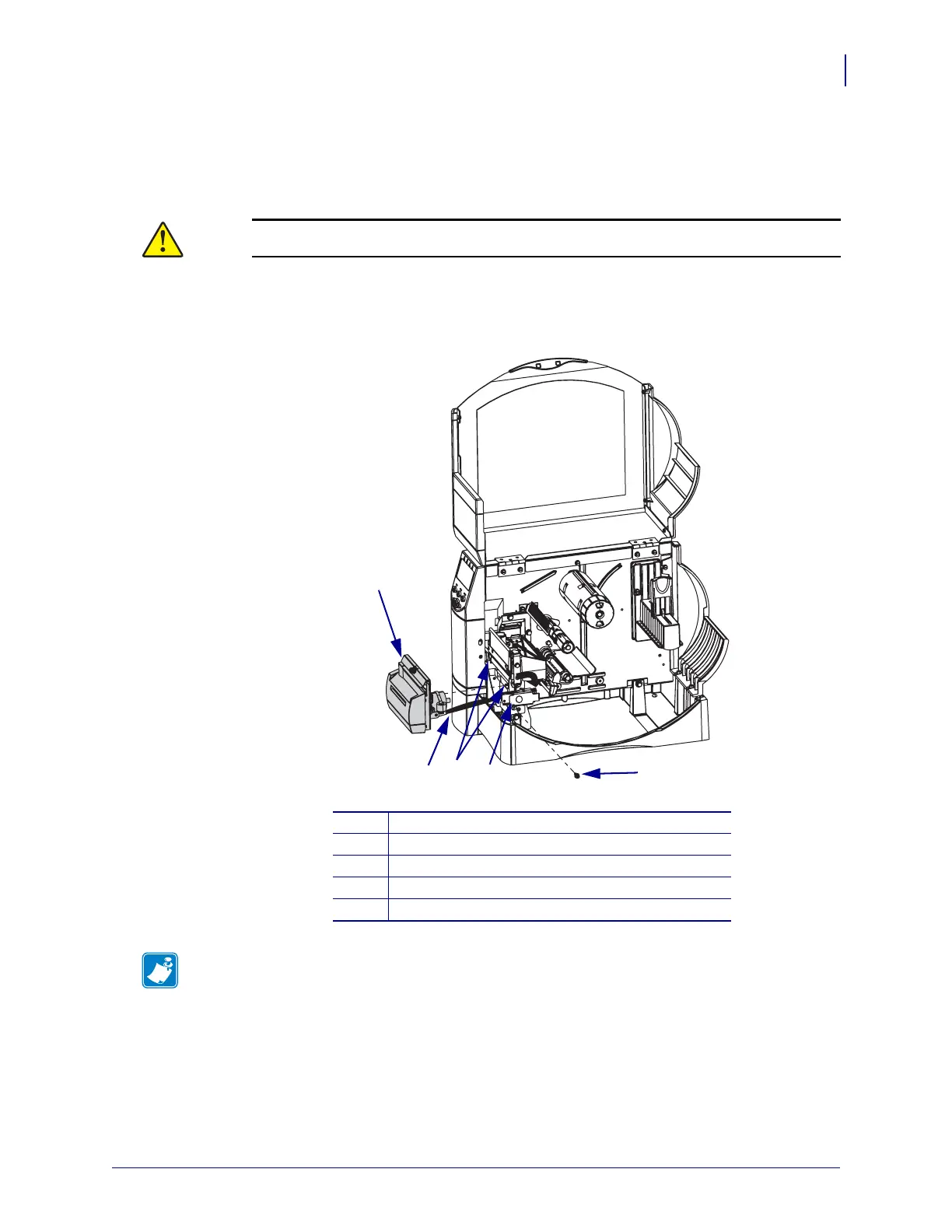

Figure 163 • Remove the Cutter Assembly
3. Slide the cutter assembly to the left then lift up and remove the assembly from the platen
assembly hooks.
4. Go to step 4 on page 294.
Caution • The cutter blade is sharp. Do not touch or rub the blade with your fingers.
Remove the cutter mounting screw.
1
Cutter assembly
2
Mounting screw
3
Printhead latch
4
Platen assembly hooks (2)
5
Cutter harness
Note • The cutter guard does not need to be removed from the cutter assembly during this
procedure.
2
3
5
1
4
