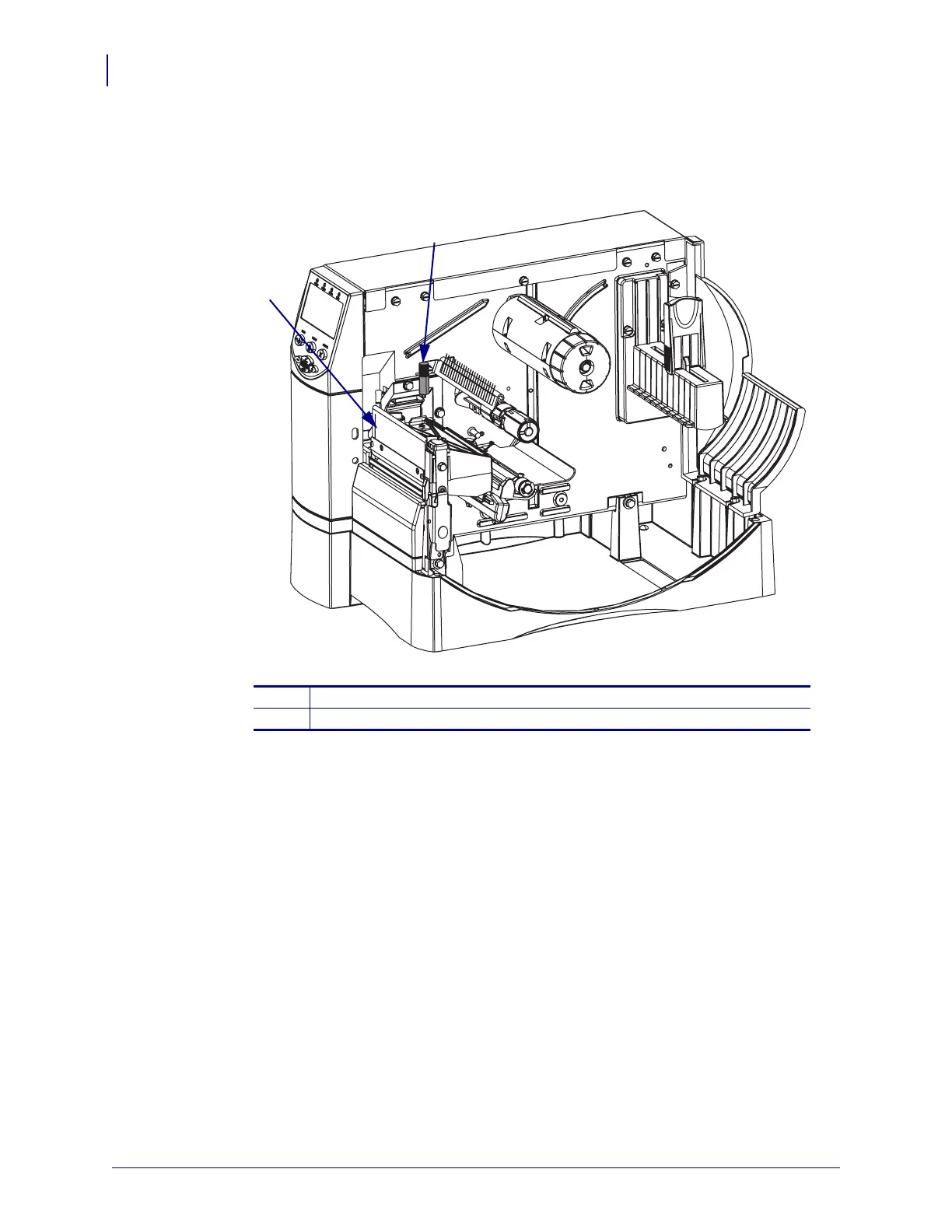

4. See Figure 159. Locate and remove the thumbscrew from the print mechanism.
Figure 159 • Remove the Thumbscrew
1
Print mechanism
2
Thumbscrew
1
2
