295
Corrective Maintenance
Printhead Conversion
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
5. See Figure 160. Open the print mechanism and latch it in the vertical position.
6.
7.
Remove and discard the printhead assembly from the printer.

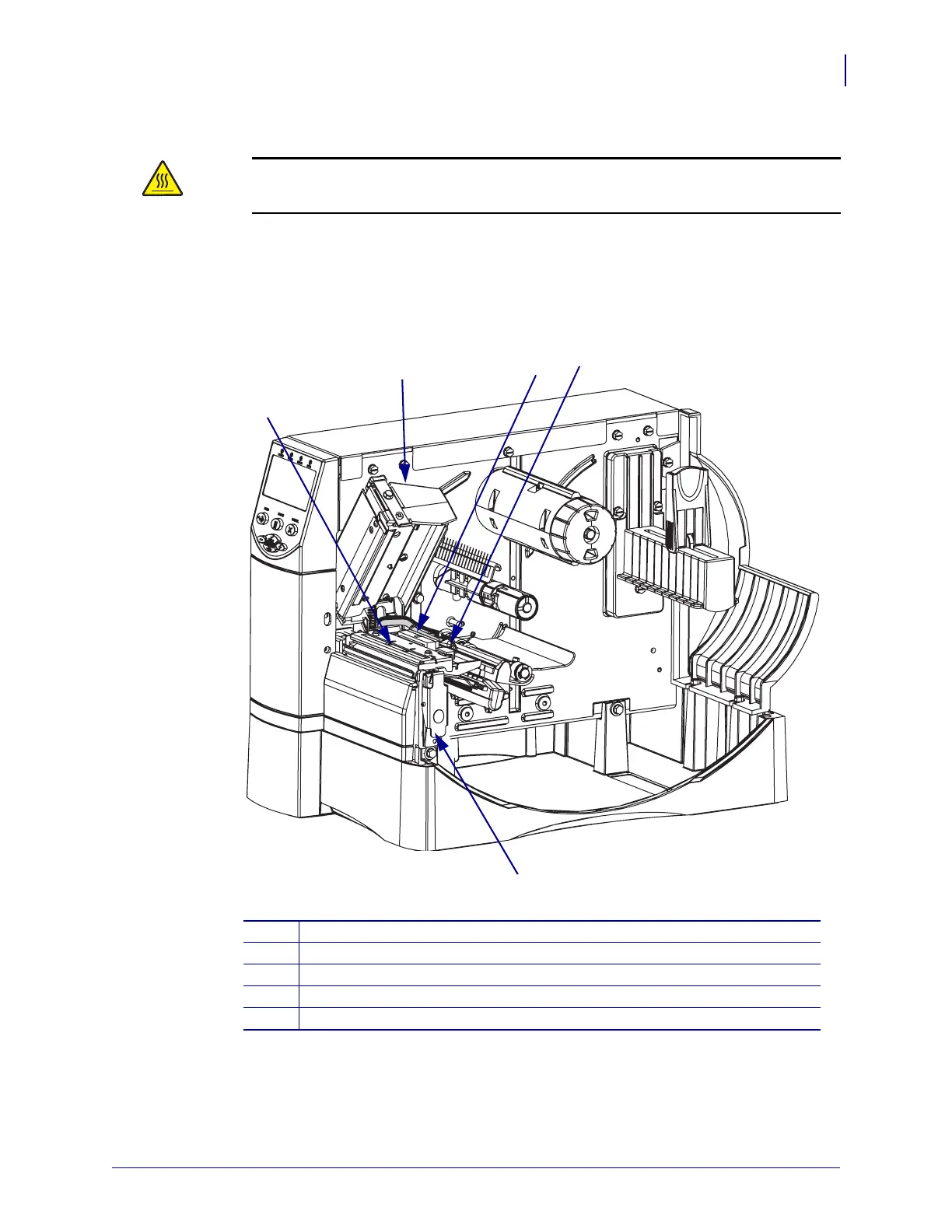

Figure 160 • Remove the Printhead
Caution • The printhead may be hot and could cause severe burns. Allow the
printhead to cool.
Disconnect the printhead data and power cables.
1
Printhead assembly
2
Print mechanism
3
Printhead data cable connector
4
Printhead power cable connector
5
Latch assembly
1
3
4
2
5
To Next Page
