Ribbon Take-Up Spindle Clutch
Ribbon Take-up Spindle Clutch
272
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
3. See Figure 137. Remove and discard the clutch bearing, hub, spring and gear from the
ribbon take-up (RTU) spindle shaft.

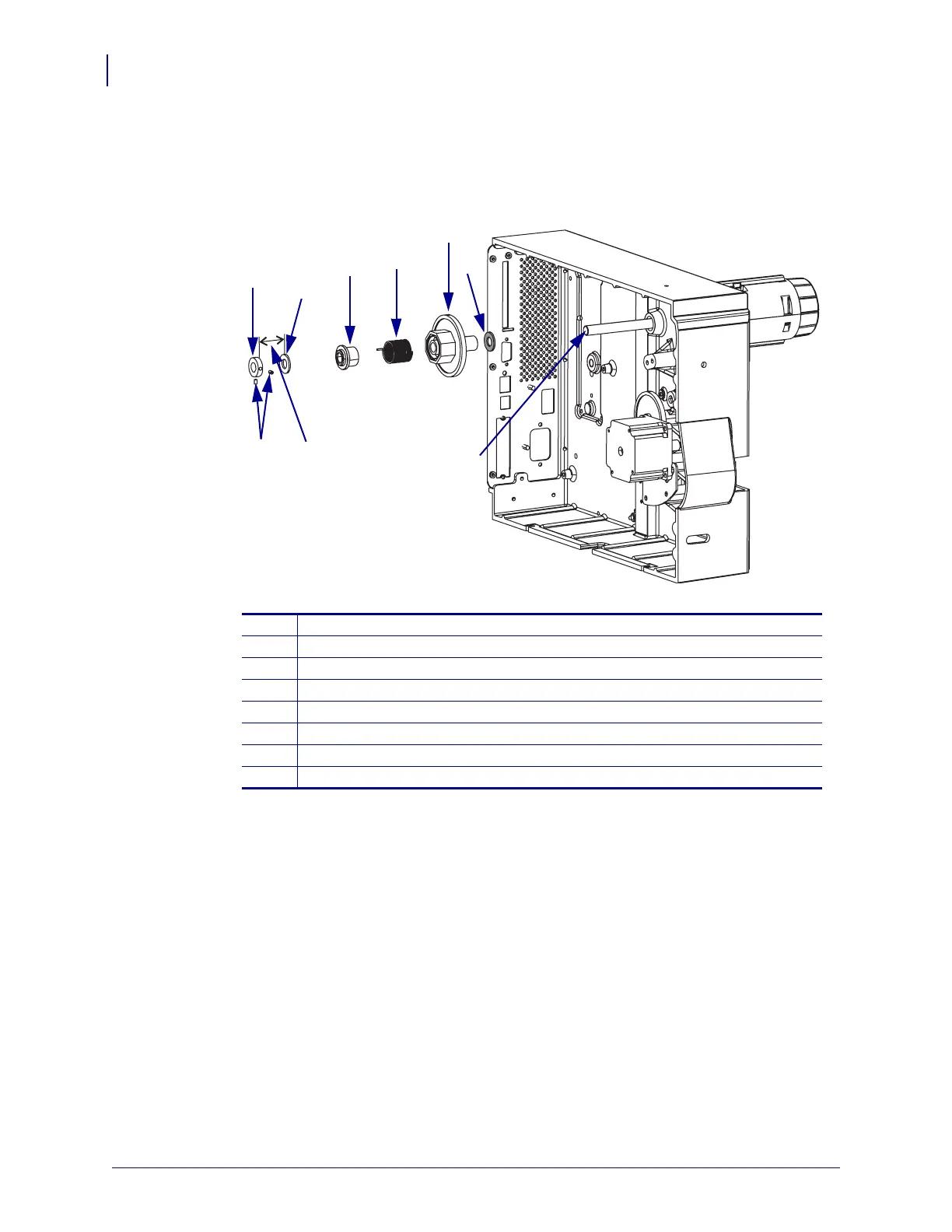

Figure 137 • Remove the Clutch
Install the New RTU Clutch
1. See Figure 137. Holding the ribbon take-up (RTU) spindle slide the washer and new
clutch gear onto the RTU spindle shaft.
2. Slide the spring, thrust washer and collar onto the RTU spindle shaft.
3. Place a 0.50 mm feeler gauge between the thrust washer and the collar.
4. From the media side, push in on the RTU spindle and then tighten the two set screws in the
collar and ensure that the RTU spindle turns freely.
1
Collar
2
Set screws (2)
3
Thrust washer
4
Bearing and hub
5
Spring
6
Clutch gear
7
RTU spindle shaft
8
0.50 mm gap between the collar and thrust washer
1
3
4
5
6
2
7
8
3

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
