Corrective Maintenance
Ribbon/Head Open Sensor Assembly
242
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Reinstall the Electronics Cover
1. See Figure 109. Install the electronics cover by aligning it and sliding down, ensuring the
lower flange is inside the base and the upper flange is between the main frame and the
media door.

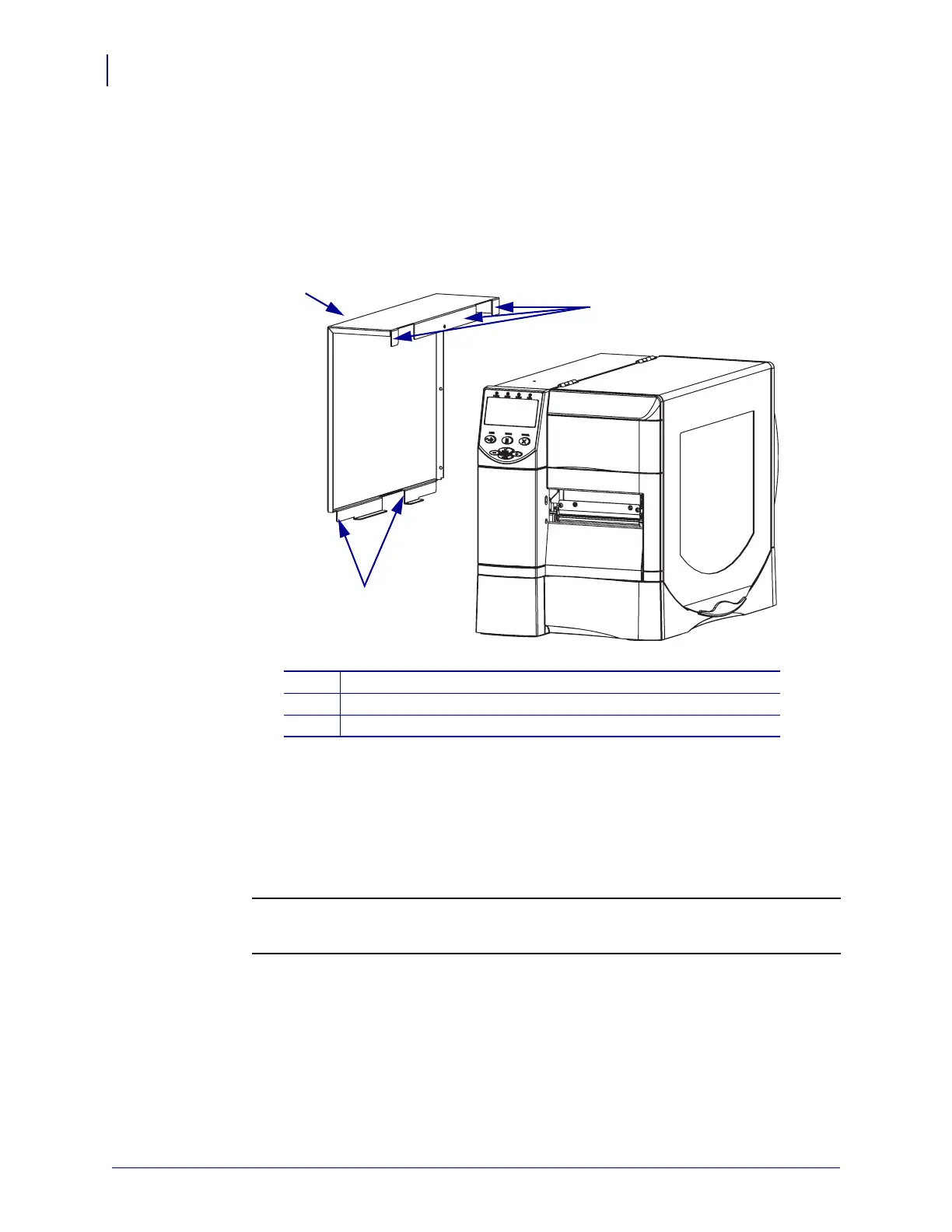

Figure 109 • Locate the Upper and Lower Flanges
2. See Figure 104 on page 237. Reinstall the electronics cover.
3. See Figure 103 on page 237. Install the four mounting screws.
4. See Figure 102 on page 236. Open the media door.
5. Install the electronics cover mounting screw and lock washer.
6.
7.
If the ribbon/head open sensor is not recognized by the main logic board see your User
Guide for calibration and setup procedures.
1
Electronics Cover
2
Upper Flanges (3)
3
Lower Flanges (2)
2
1
3
Caution • When you are loading media or ribbon, remove all jewelry that could come
into contact with the printhead or other printer parts.
Reinstall the media and ribbon.
