Zebra ZM400 Series

Corrective Maintenance
Ribbon Take-up Spindle
278
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Remove the Gear Cover
1. See Figure 142. Lay the printer on its side, media door down on a mat.

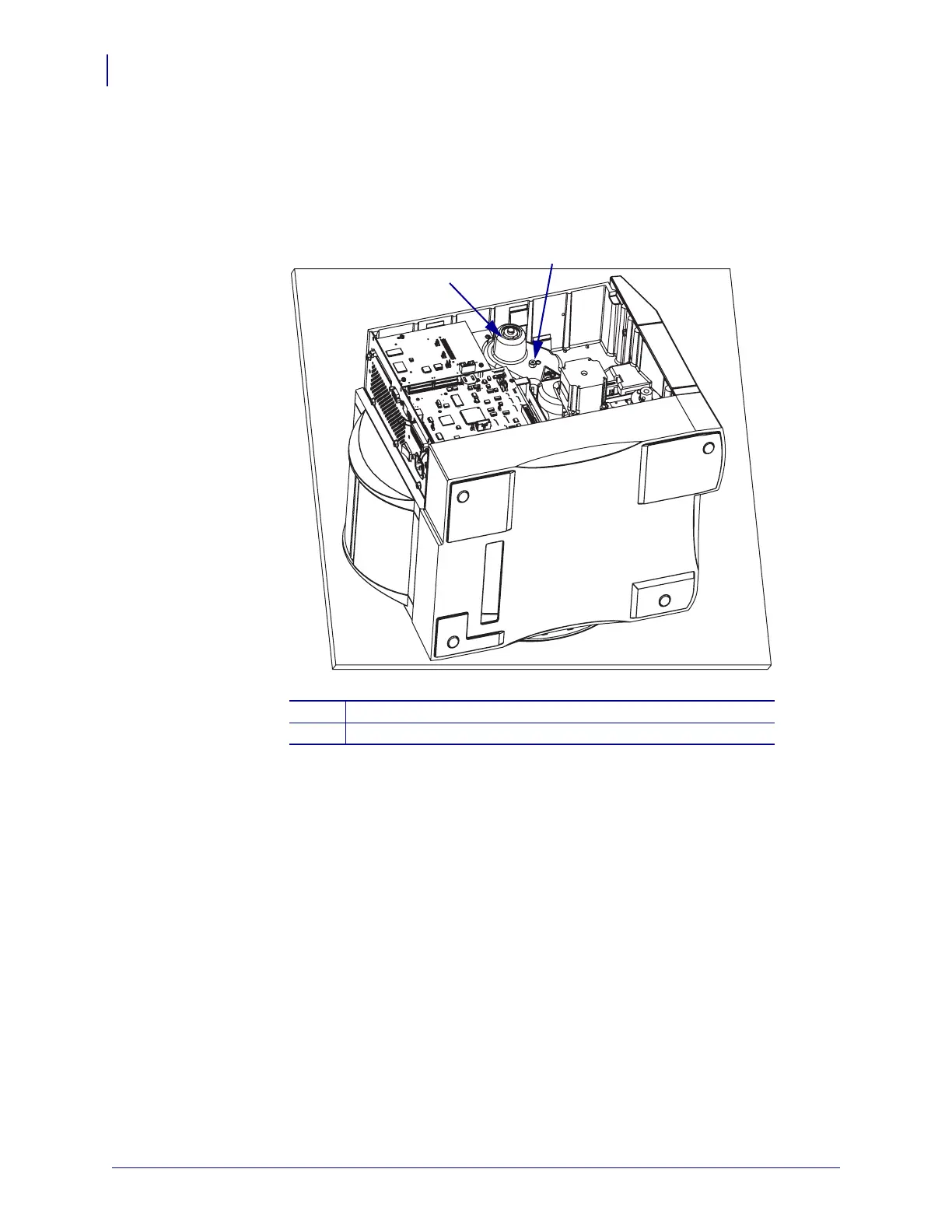

Figure 142 • Lay the Printer on its Side
1
Gear cover
2
Mounting screw
1
2
