Corrective Maintenance
Ribbon Supply Spindle
304
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Remove the Old Ribbon Supply Spindle
Remove the Gear Cover
1. See Figure 167. Lay the printer on its side, media door down on a mat.

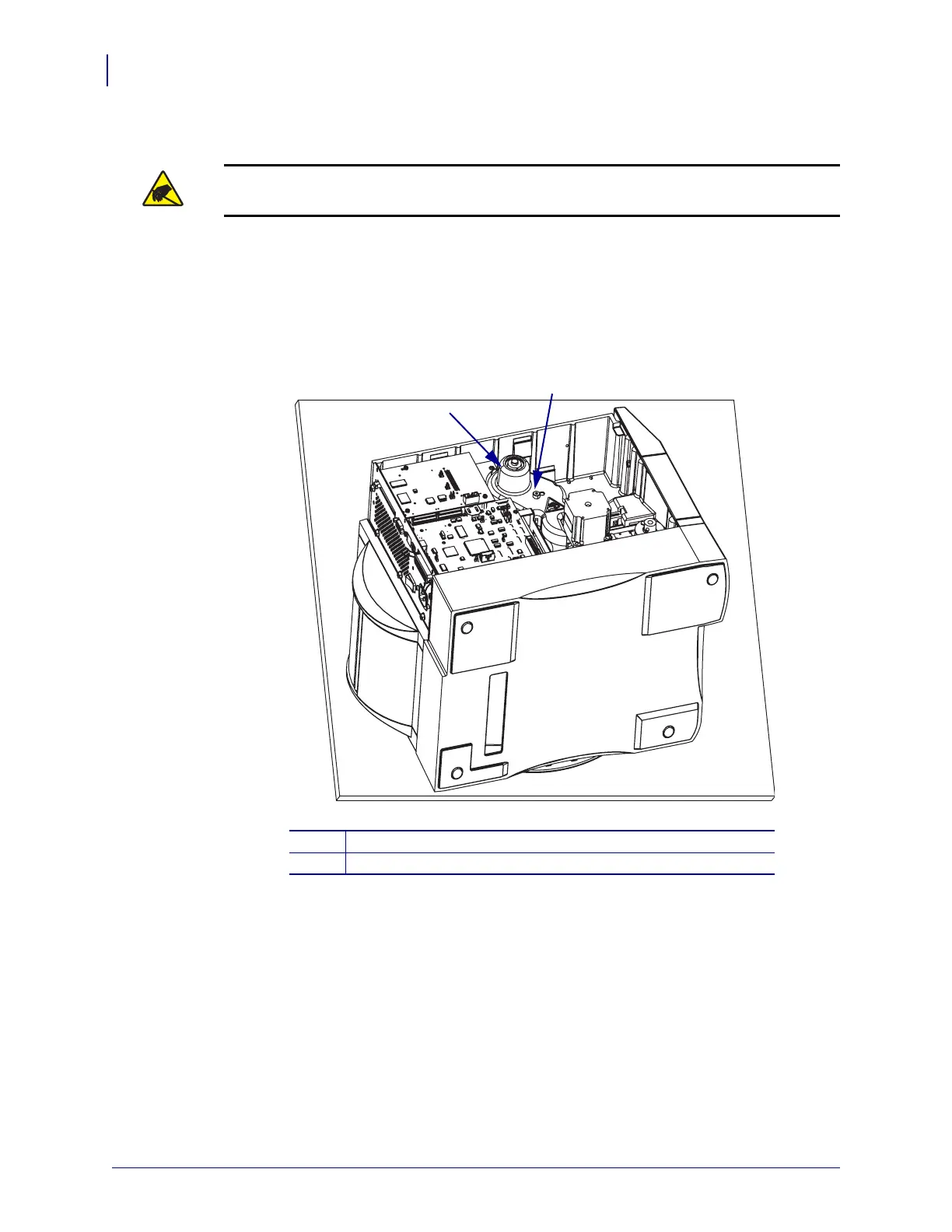

Figure 167 • Lay the Printer on its Side
Caution • Observe proper electrostatic safety precautions when handling any
static-sensitive components such as circuit boards and printheads.
1
Gear cover
2
Mounting screw
1
2
