Corrective Maintenance
Peel Rewind Option
354
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Align the Rewind/Peel Media
Perform the following adjustment if the media does not track properly onto the take-up
spindle.
See Figure 215.

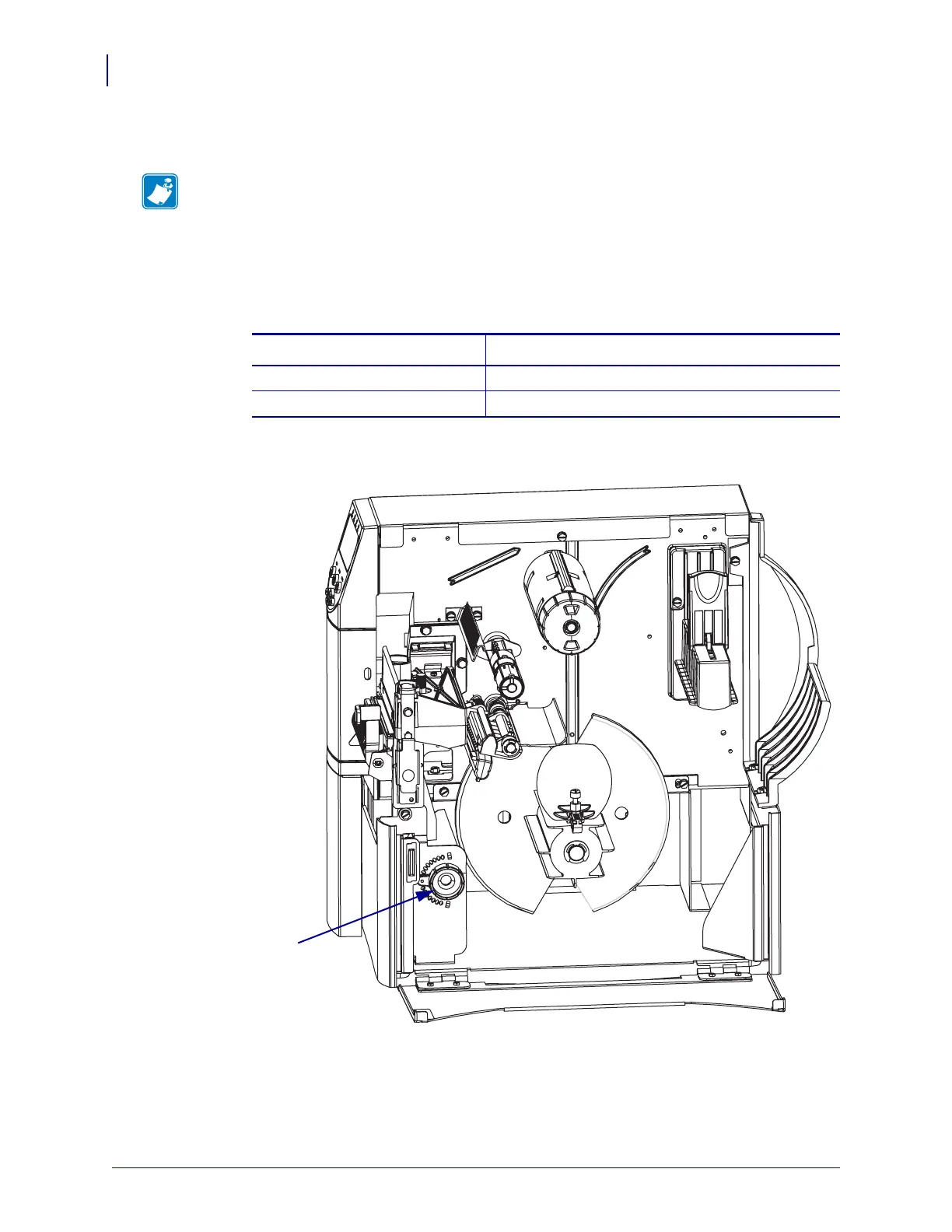

Figure 215 • Align the Rewind Media
Note • The media/liner should be installed flush against the back plate of the take-up spindle
to prevent the media/backing from winding too loosely.
If want to move the media… Then…
Toward the main frame Turn the dial clockwise
Away from the main frame Turn the dial counterclockwise
Dial
