Zebra ZM400 Series User Manual

255
Drive Belt
Drive Belt Maintenance Kit
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
4. Rotate the motor down until the drive belt is just taut. Tighten the locking screw and then
the pivot screw.
Reinstall the Electronics Cover
1. See Figure 121. Install the electronics cover by aligning it and sliding down, ensuring the
lower flanges are inside the base and the upper flanges are between the main frame and the
media door.

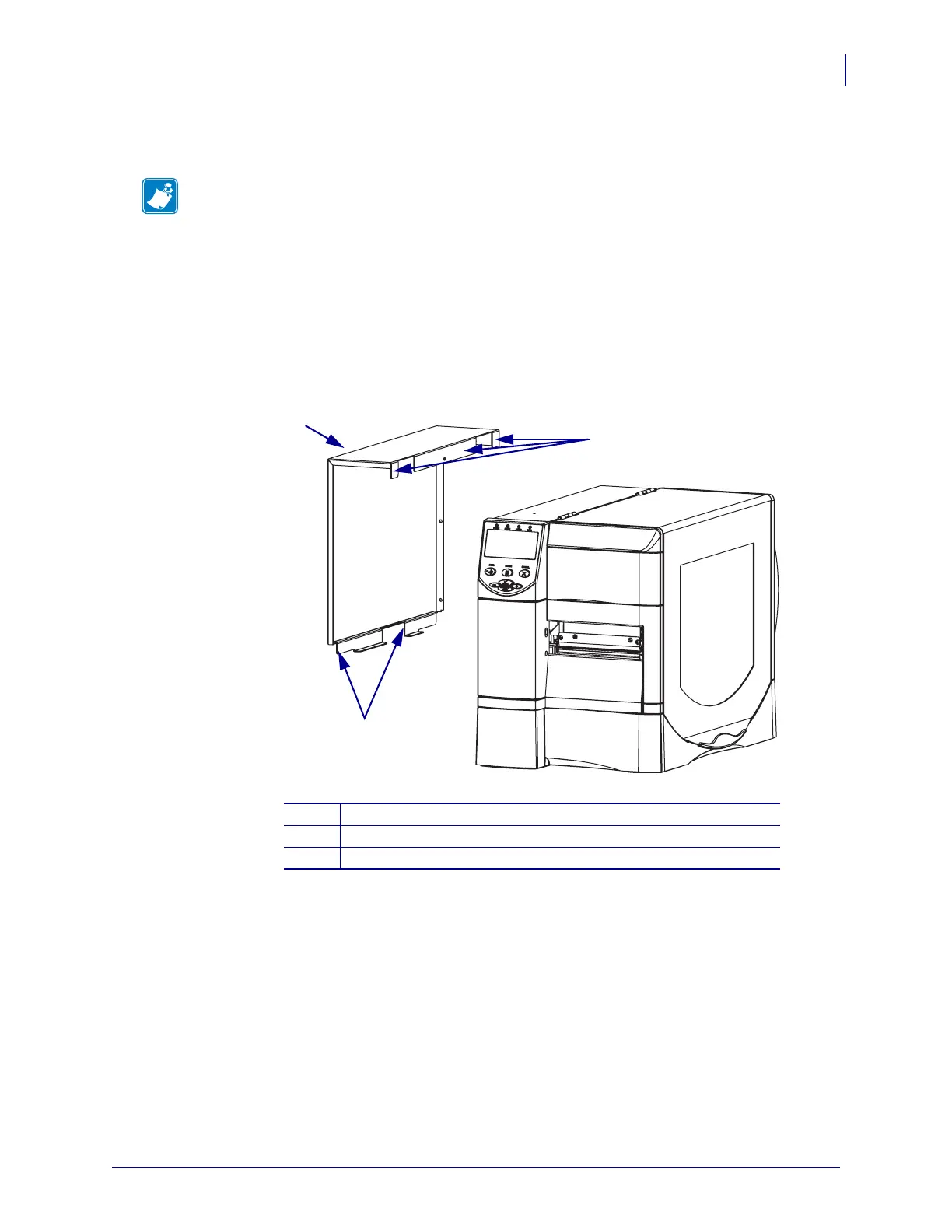

Figure 121 • Locate the Upper and Lower Flanges
2. See Figure 118 on page 253. Install the four mounting screws.
3. See Figure 117 on page 252. Open the media door.
4. Install the electronics cover mounting screw and lock washer.
5. Reinstall the AC power cord and data cables.
6. Turn on (l) the printer.
Note • The belt should deflect under finger pressure but no more than 6 mm (1/4 inch).
1
Electronics cover
2
Upper flanges (3)
3
Lower flanges (2)
2
1
3

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
