Corrective Maintenance
Ribbon Supply Spindle
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Reinstall the Electronics Cover
1. See Figure 178. Install the electronics cover by aligning it and sliding down, ensuring the
lower flanges are inside the base and the upper flanges are between the main frame and the
media door.

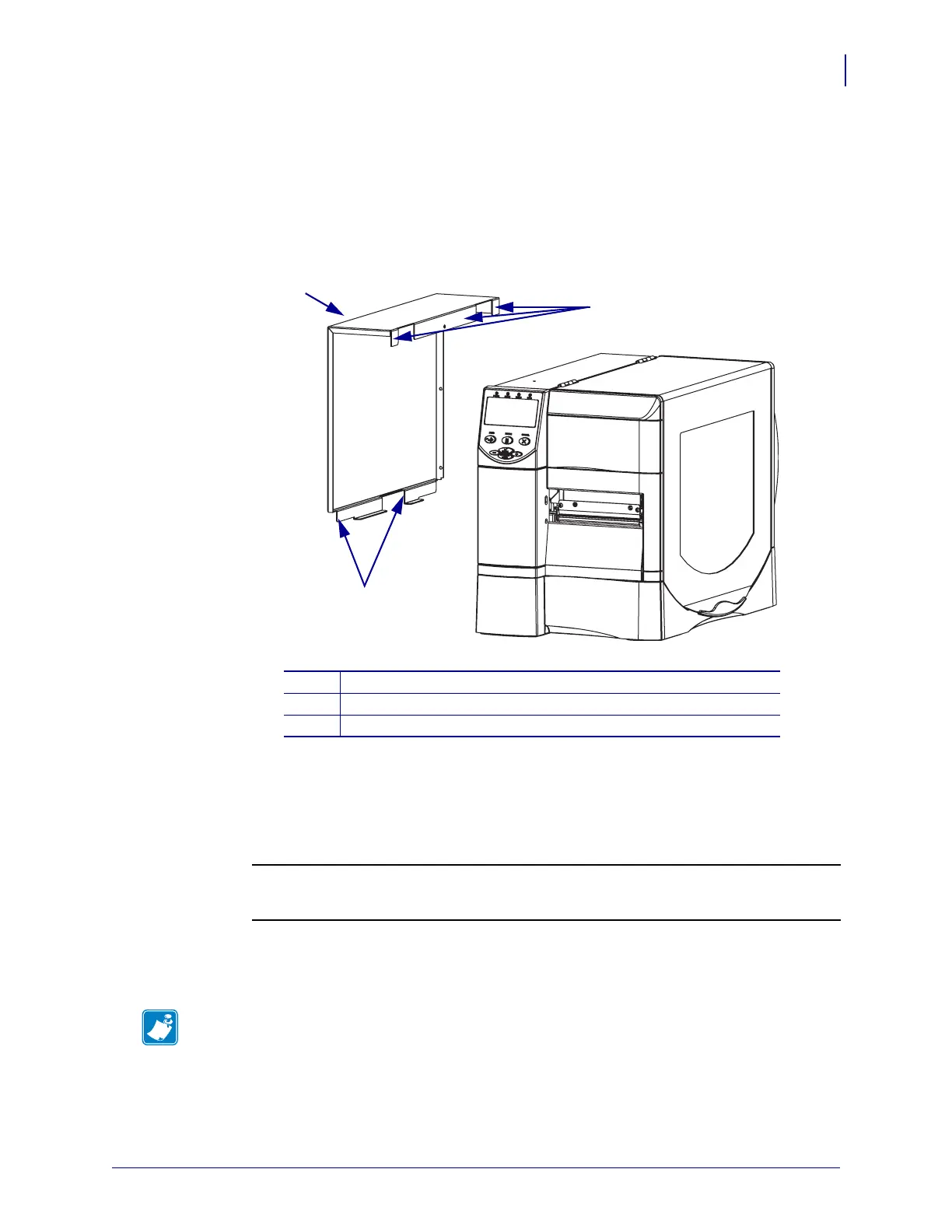

Figure 178 • Locate the Upper and Lower Flanges
2. See Figure 165 on page 303. Install the four mounting screws.
3. See Figure 164 on page 302. Open the media door.
4. Install the electronics cover mounting screw and lock washer.
5.
6.
Set the tension on the ribbon supply spindle.
7. Reconnect the AC power cord and data cables.
8. Turn on (l) the printer.
1
Electronics cover
2
Upper flanges (3)
3
Lower flanges (2)
2
1
3
Caution • When you are loading media or ribbon, remove all jewelry that could come
into contact with the printhead or other printer parts.
Reinstall the media and ribbon.
Note • If your ribbon is wide, use the high tension setting. If you experience ribbon
slippage, use the low tension setting.

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
