7. Do you have a wireless board installed?
Remove the Wireless Board
1.
2.
See Figure 87. Press in on the eject button to remove the radio card.

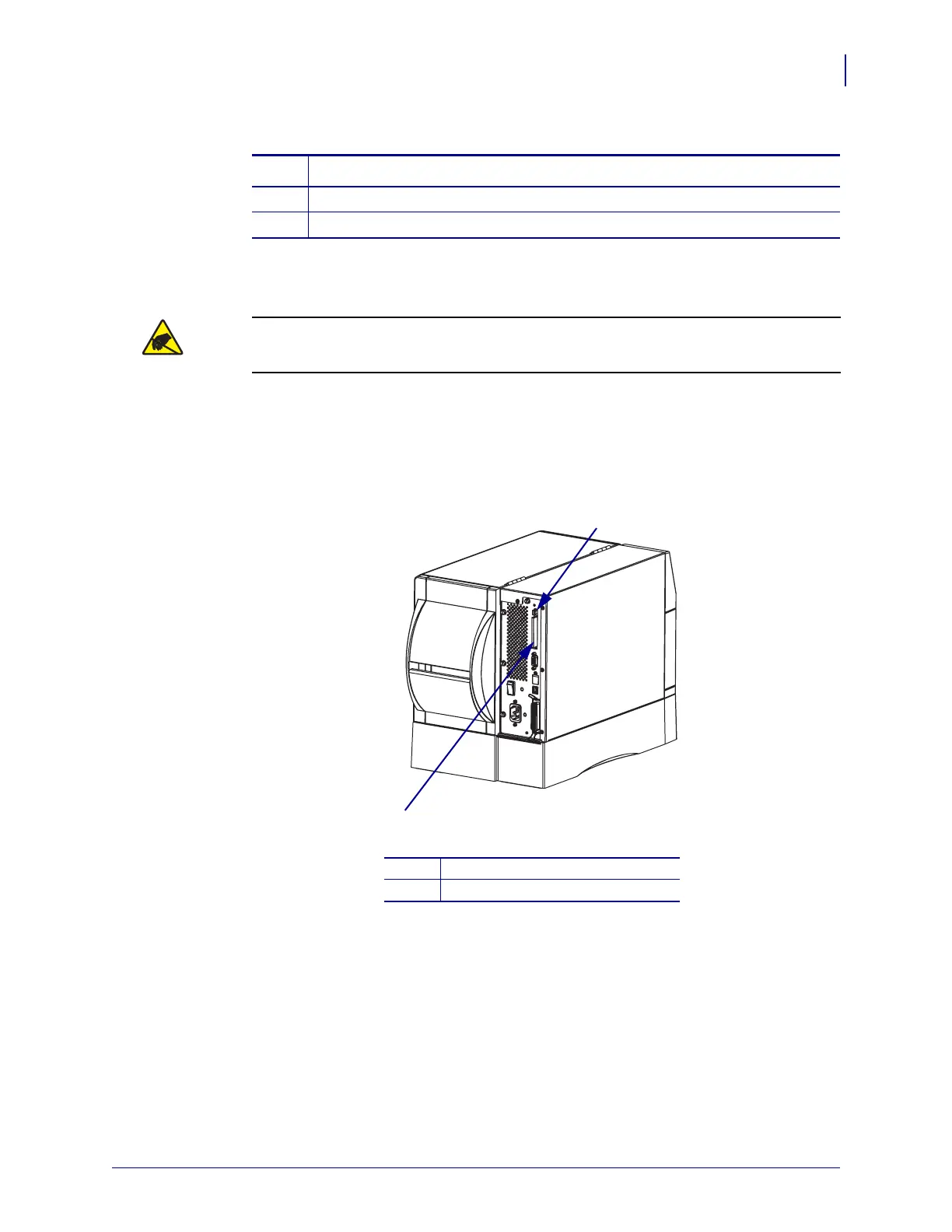

Figure 87 • Remove the Radio Card
If… Then…
No Go to Access the Power Supply on page 219.
Yes Continue with Remove the Wireless Board.
Caution • Observe proper electrostatic safety precautions when handling
static-sensitive components such as circuit boards and printheads.
Connect yourself to an antistatic device.
1
Eject button
2
Radio card
2
1
