3. See Figure 88. Remove the screw from the upper left corner of the wireless board.
4. Remove the two lower mounting screws and then remove the wireless board from the
main logic board (MLB).

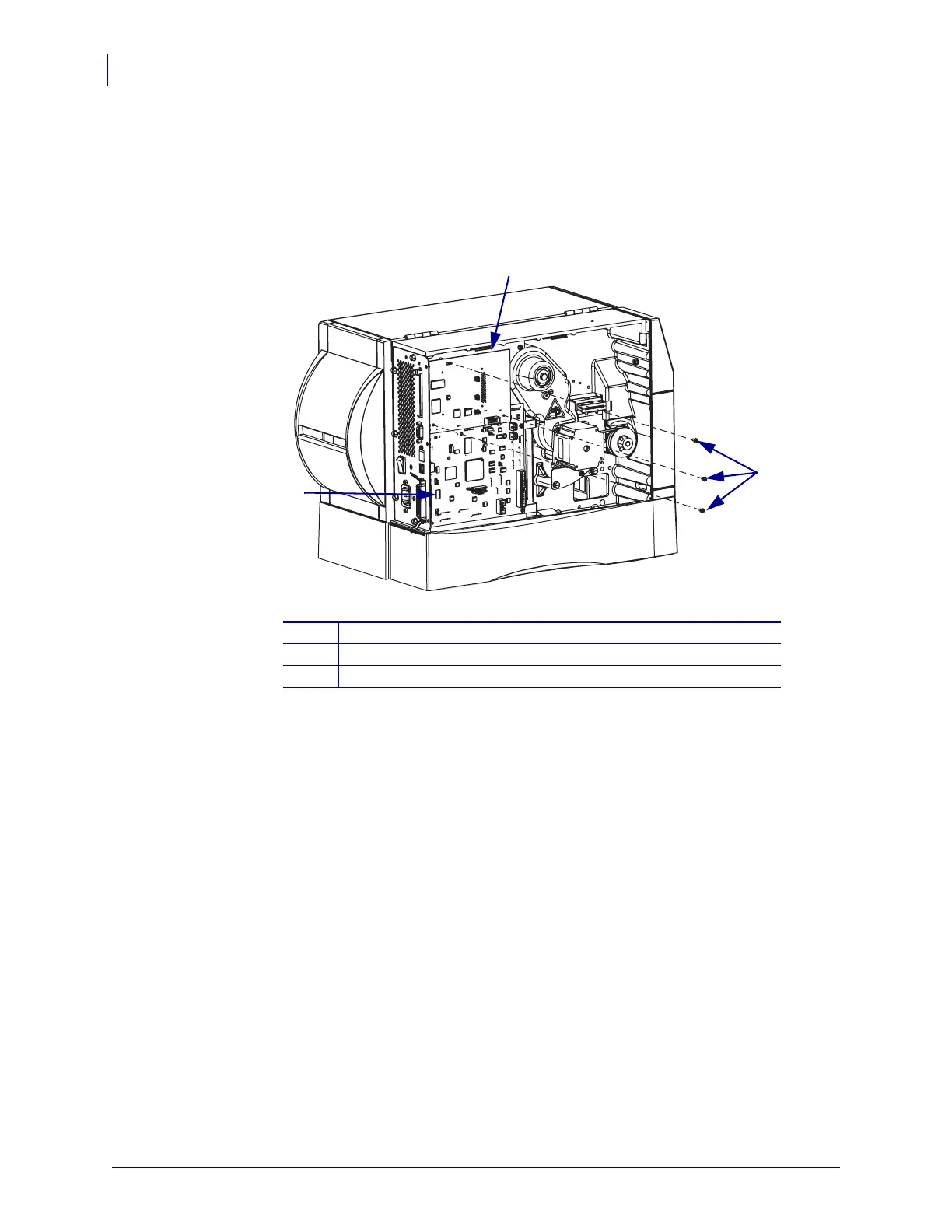

Figure 88 • Remove the Wireless Board
1
Wireless board
2
Mounting screws (3)
3
Main logic board (MLB)
1
2
3
