Drive Belt
Drive Belt Maintenance Kit
252
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Drive Belt Maintenance Kit
Tools Required
Remove the Electronics Cover
1.
2.
See Figure 117. Remove the screw and washer securing the electronics cover.

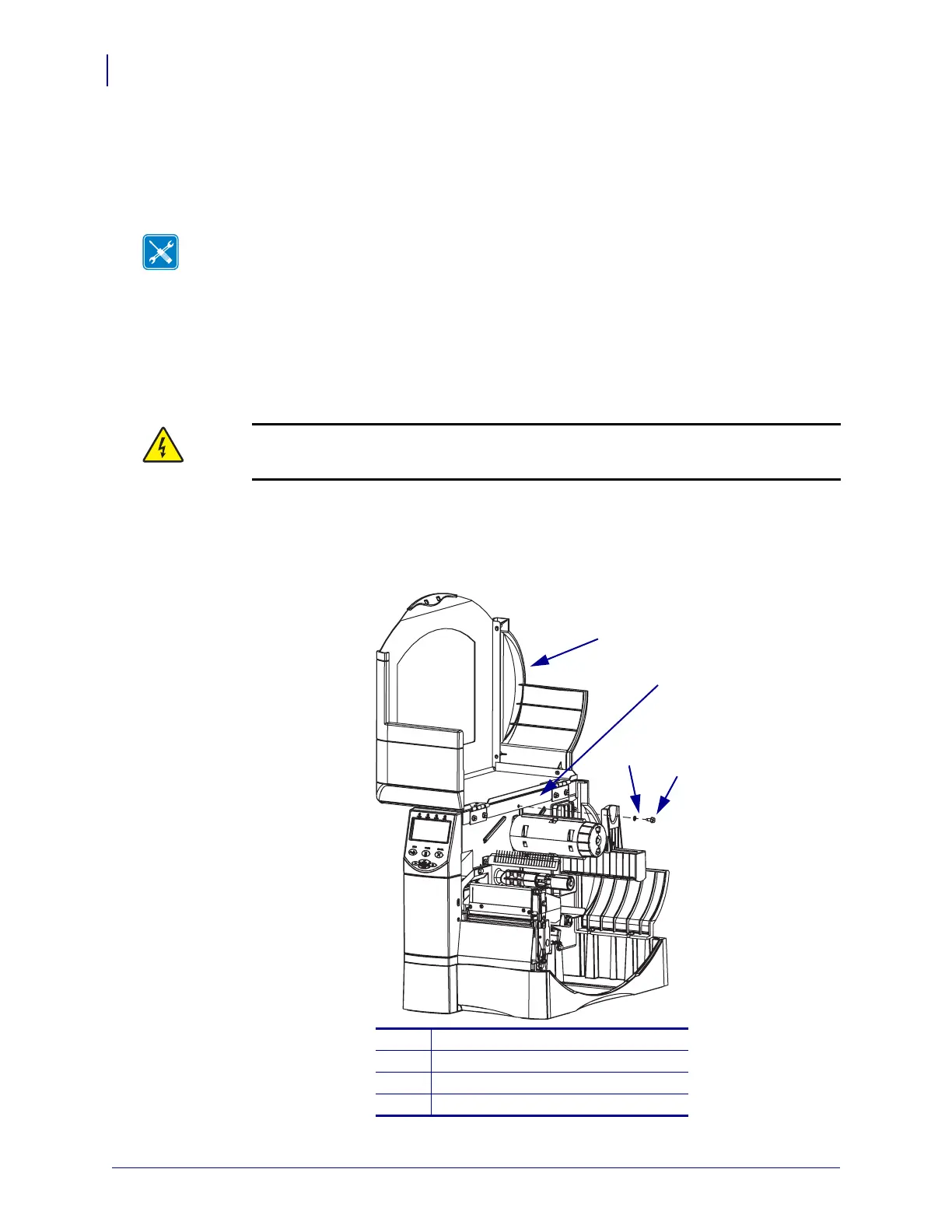

Figure 117 • Locate the Electronics Cover Mounting Screw
Tools • You need these tools to complete this procedure:
Phillips Screwdriver Set
Flat-blade Screwdriver Set
Antistatic Wriststrap and Mat
Metric Hex Key (Allen Wrench) Set
Caution • Turn off (O) the printer and disconnect it from the power source before
performing the following procedure.
1
Media door
2
Electronics cover
3
Washer
4
Mounting screw
1
2
3
4
To Next Page
