Drive Belt
Drive Belt Maintenance Kit
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
3. Close the media door.

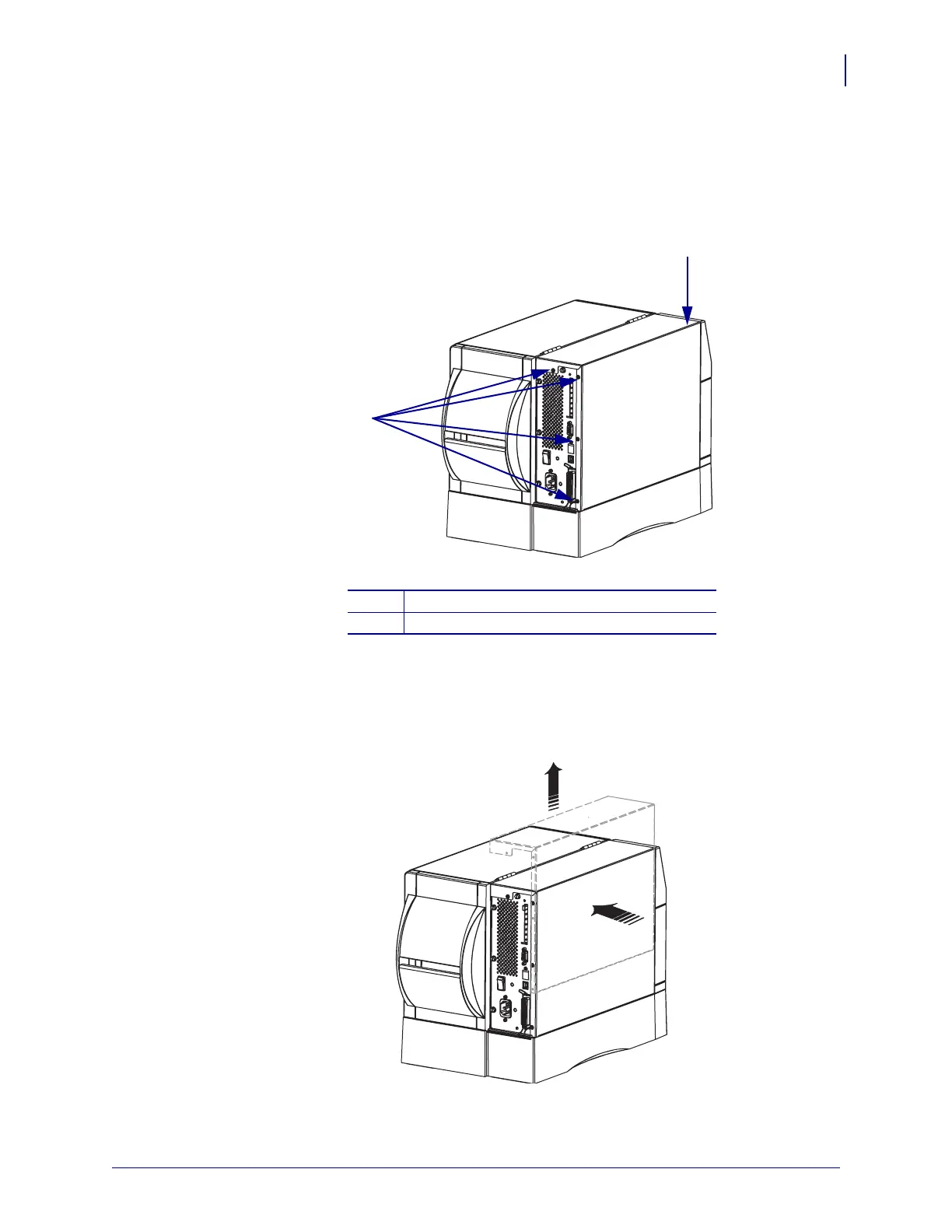

4. See Figure 118. Remove the four mounting screws on the rear of the printer.
Figure 118 • Remove the Electronics Cover Mounting Screws
5. See Figure 119. Remove the electronics cover by pressing in on the electronics cover with
the palm of your hand, and then lifting up on the cover.
Figure 119 • Remove the Electronics Cover
1
Electronics cover
2
Mounting screws (4)
2
1
