Corrective Maintenance
Wired Ethernet
420
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Reinstall the Electronics Cover
1. See Figure 279. Install the electronics cover by aligning it and sliding down, ensuring the
lower flange is inside the base and the upper flange is between the main frame and the
media door.

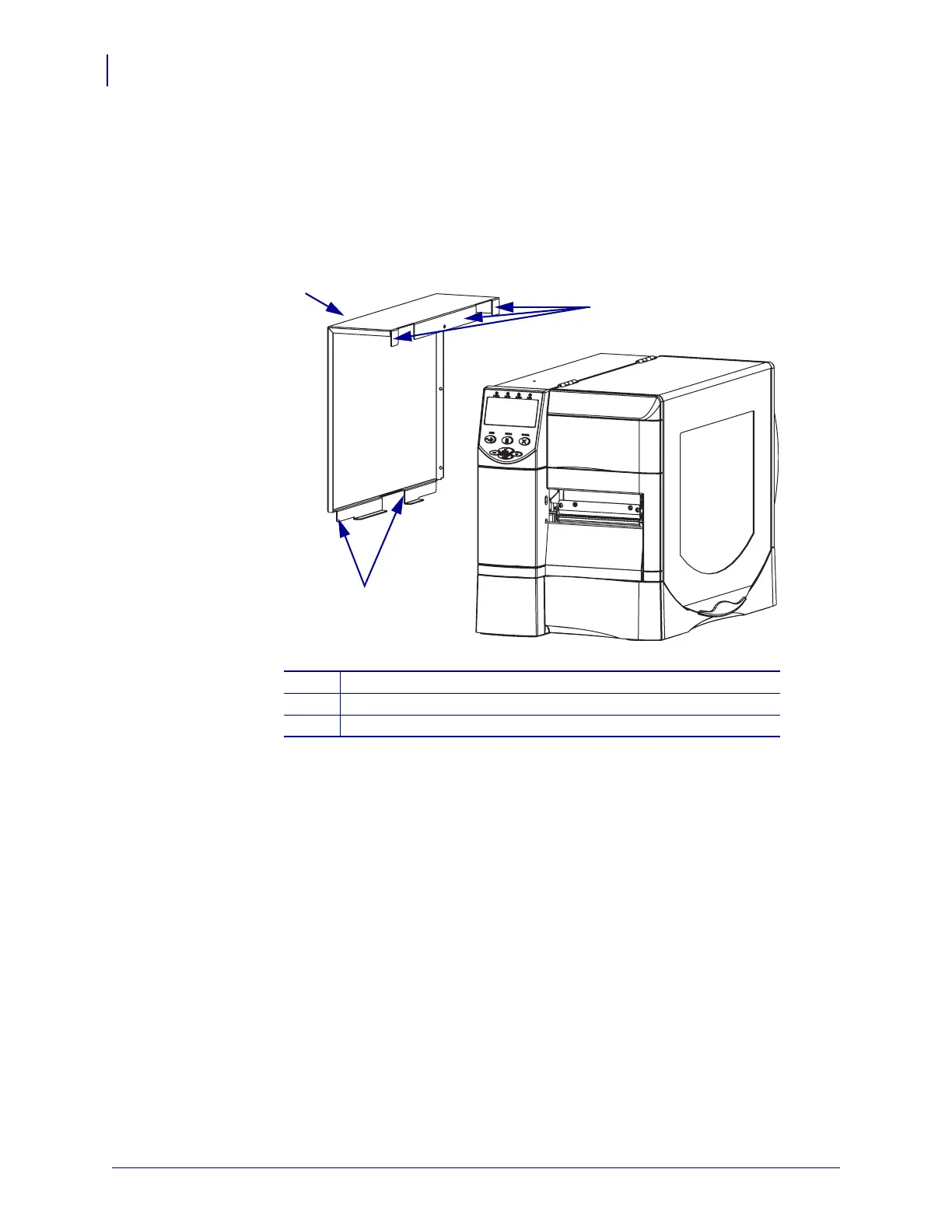

Figure 279 • Locate the Upper and Lower Flanges
2. See Figure 273 on page 416. Install the four mounting screws.
3. See Figure 272 on page 415. Open the media door.
4. Install the electronics cover mounting screw and lock washer.
5. Reconnect the AC power cord and data cables.
6. Turn on (l) the printer.
7. See your User Guide to set up your Ethernet board.
1
Electronics Cover
2
Upper Flanges (3)
3
Lower Flanges (2)
2
1
3

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
