Corrective Maintenance
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Remove the Stepper Motor
1. See Figure 91. Locate the stepper motor and drive belt.

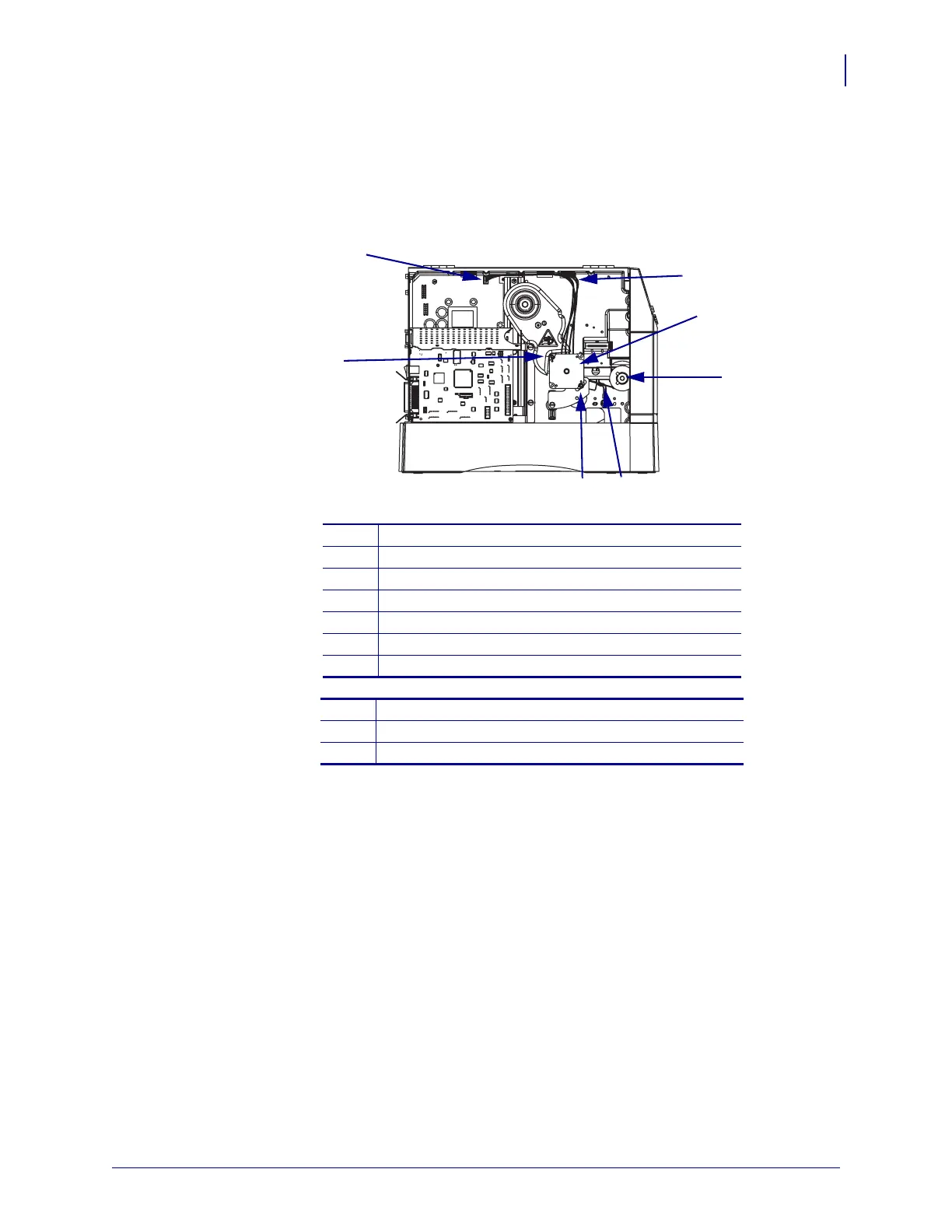

Figure 91 • Locate Drive System Components
2. Disconnect the stepper motor cable from J2 on the power supply.
3. Remove the locking screw and nut.
4. Remove the pivot screw and then remove the stepper motor.
5. Set the stepper motor aside.
6. Continue with Remove the Media Sensor Connections.
1
Power supply, J2
2
Stepper motor cable routing
3
Stepper motor
4
Platen pulley
5
Drive belt
6
Locking screw
7
Pivot screw
5
Drive belt
6
Locking screw
7
Pivot screw
1
2
3
4
5
6
7

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
