Corrective Maintenance
Peel Rewind Option
344
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Install the Rewind Spindle Assembly
1. See Figure 205. Place the rewind motor and spindle assembly in the rewind pan assembly.

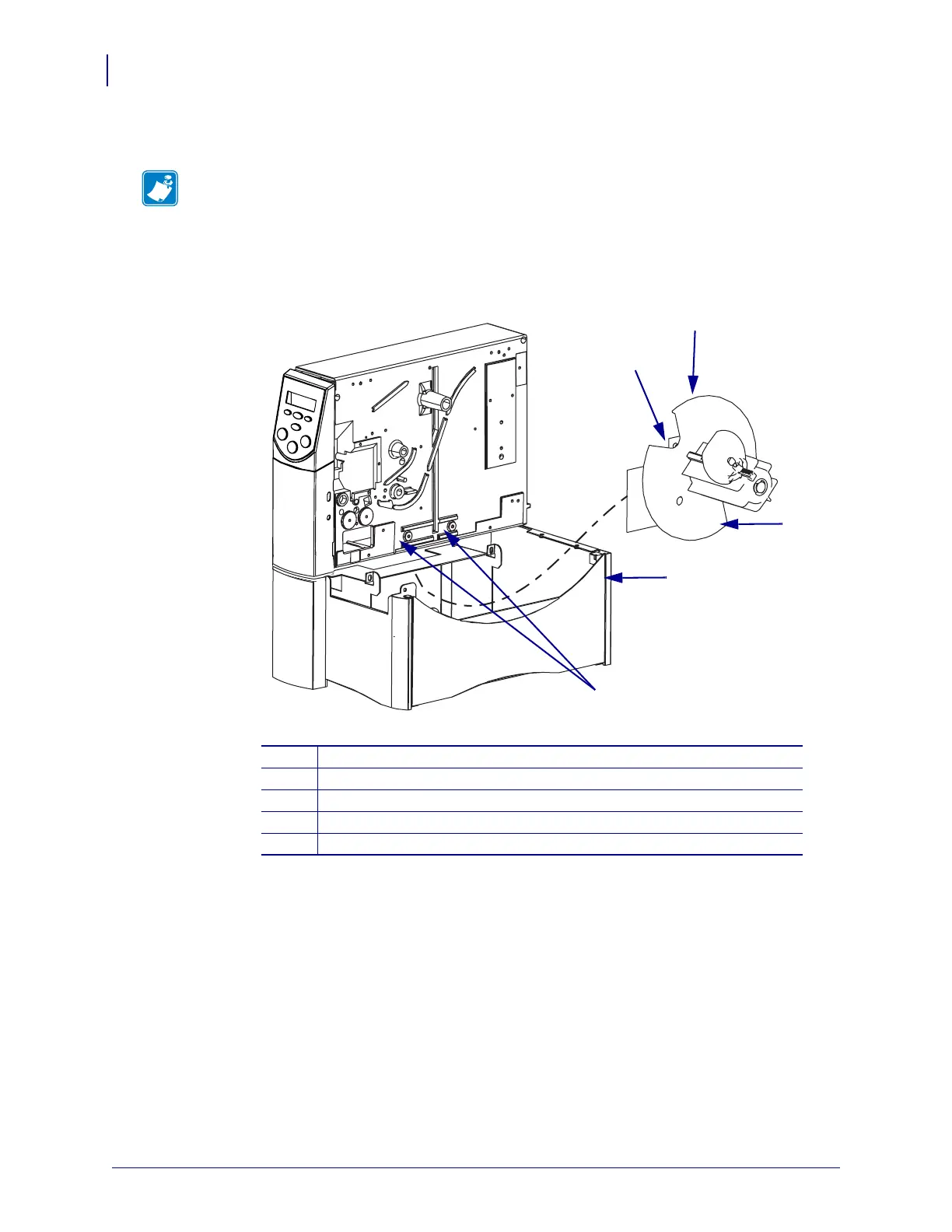

Figure 205 • Install the Rewind Spindle Assembly
2. Feed the media rewind cable through the hole in the bottom of the main frame.
Note • Make sure the two holes on rewind support bracket face up and are in line with the
printer main frame.
1
Rewind spindle and motor assembly
2
Rewind support bracket (holes must be on top)
3
Rewind spindle back plate
4
Rewind pan
5
Mounting holes for rewind support bracket
2
1
3
4
5

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
