Corrective Maintenance
Print Mechanism
158
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Gain Access to the Power Supply
1.
2.
See Figure 37. Remove the standoff from the upper left of the power supply shield.
3. Remove the mounting screw from the upper right of the power supply shield.

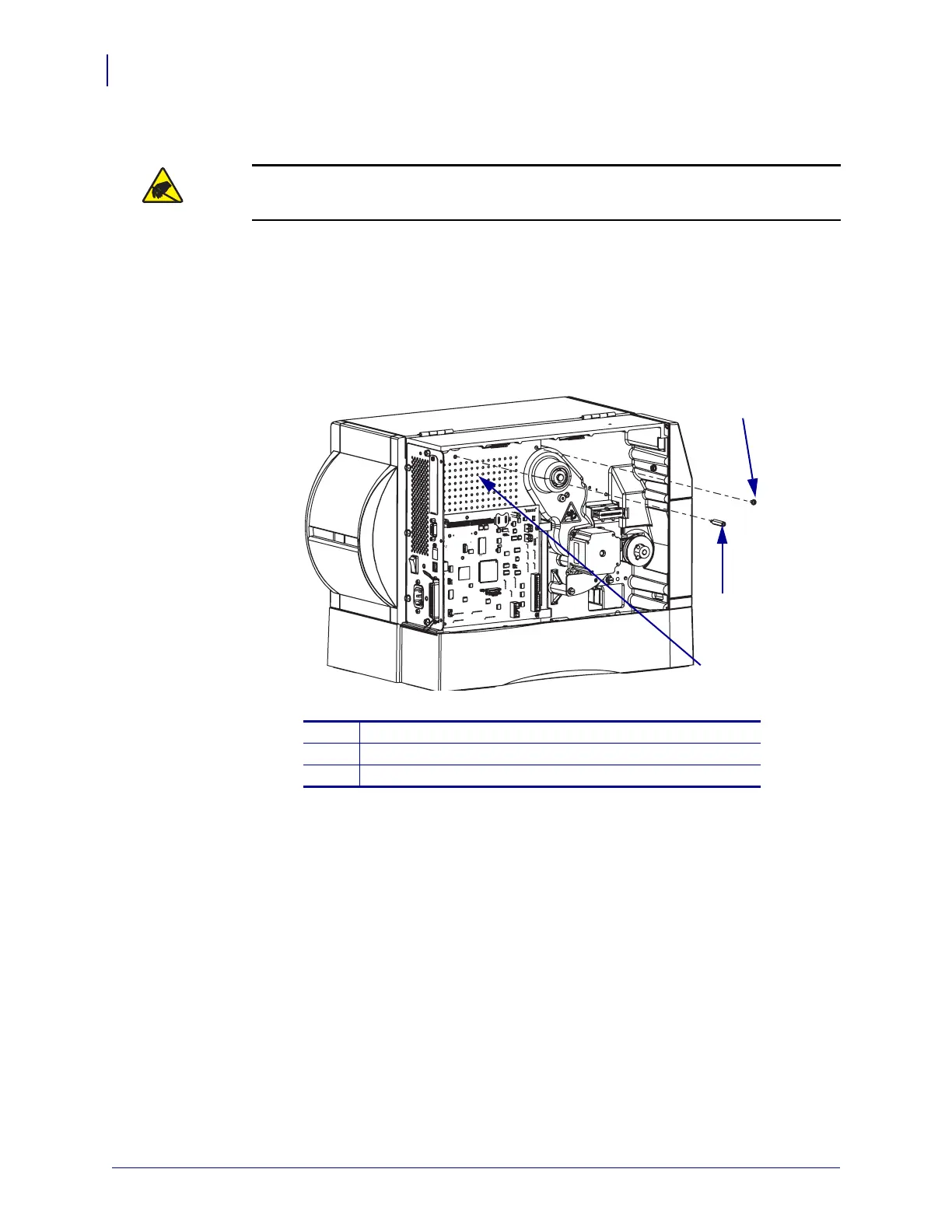

Figure 37 • Remove the Standoff and Screw
Caution • Observe proper electrostatic safety precautions when handling
static-sensitive components such as circuit boards and printheads.
Connect yourself to an antistatic device.
1
Mounting screw
2
Mounting standoff
3
Power supply shield
2
1
3
To Next Page
