Corrective Maintenance
Print Mechanism
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
4. See Figure 38. Pull the top of the shield away from the main frame and fold it down to
access the printhead power connector.

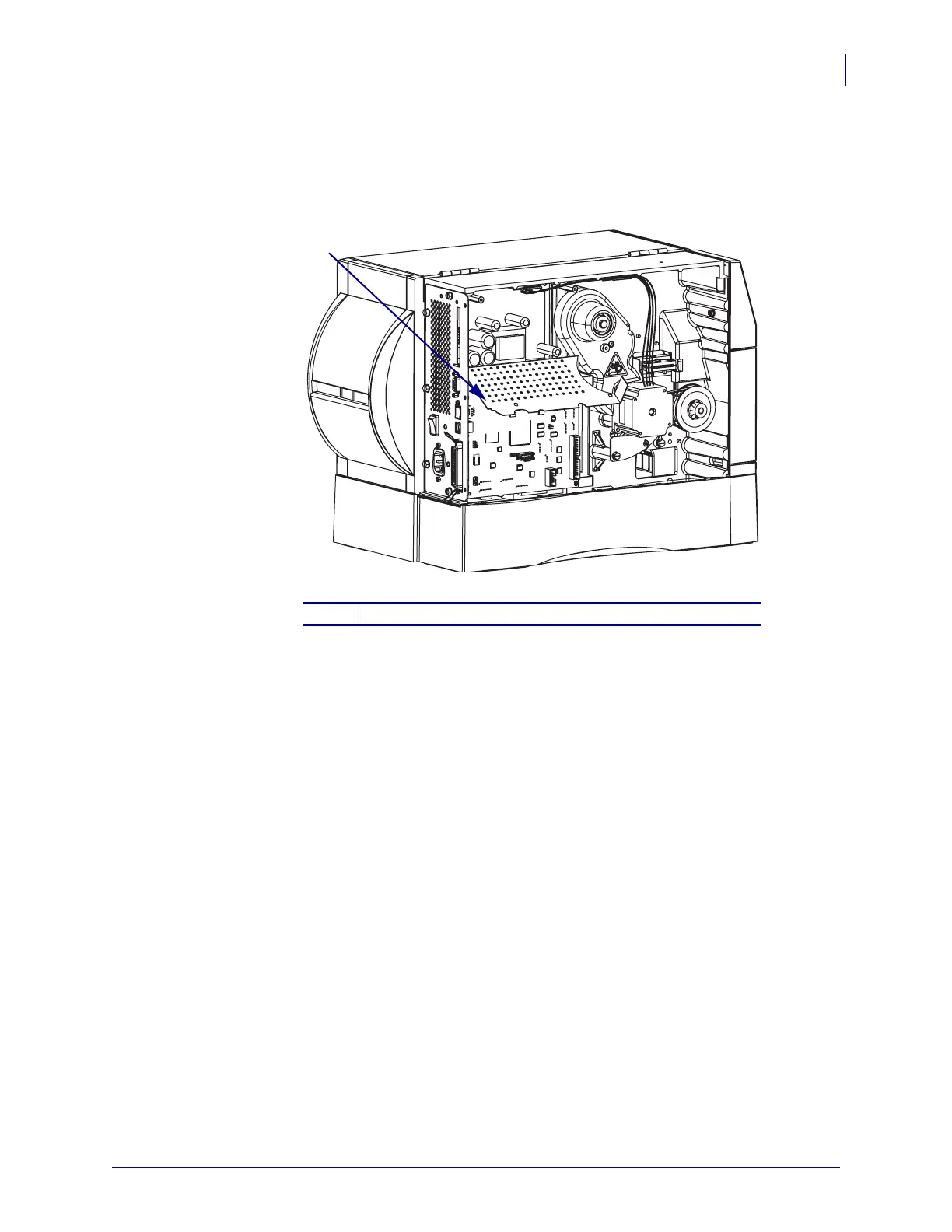

Figure 38 • Gain Access the Power Supply
1
Shield
1
