Operations
Print Modes and Printer Options
56
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Media Paths

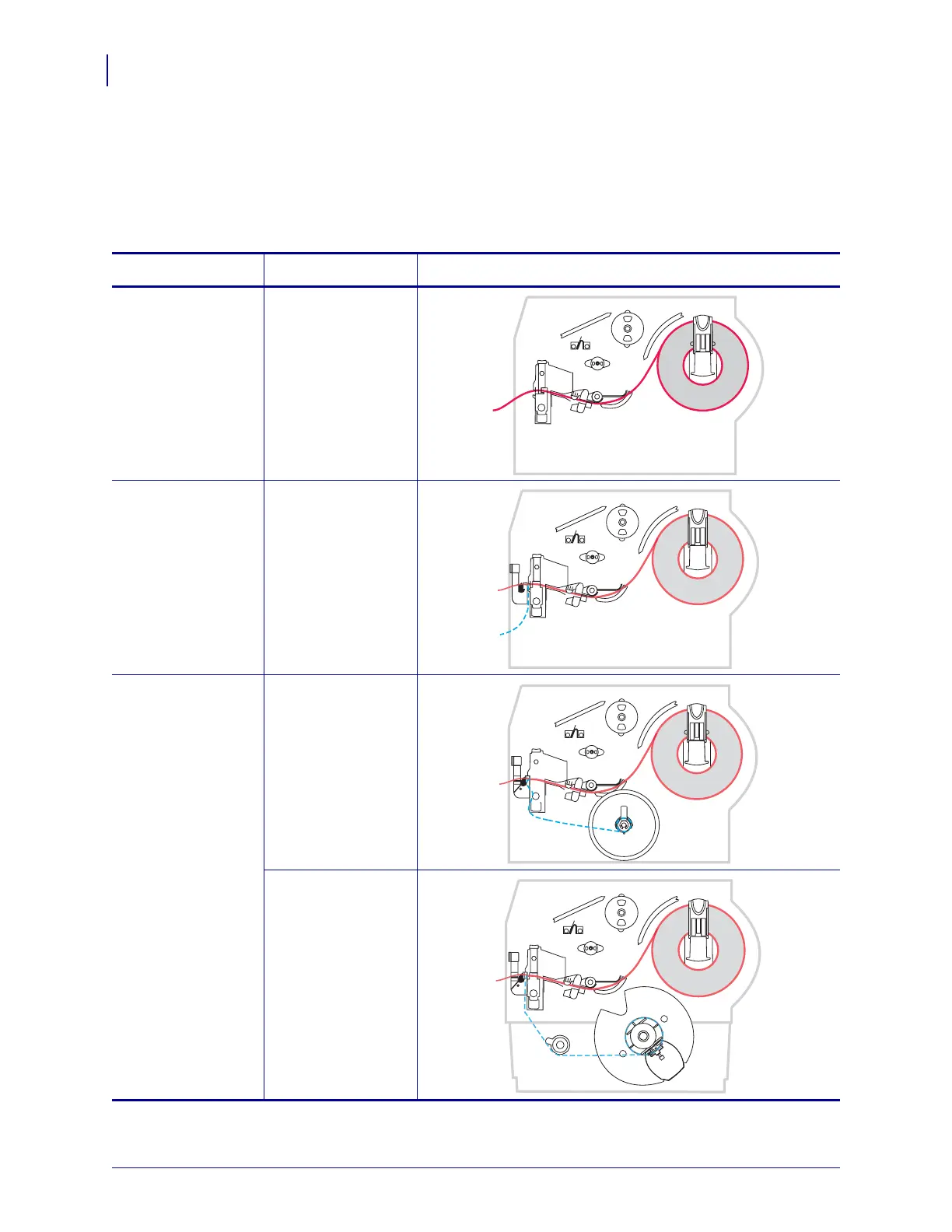

Table 9 shows the media paths for print mode and printer option combinations using roll
media. Fanfold media uses the same print modes and printer options as roll media.
Table 9 • Media Paths for Print Modes with Various Printer Options
Print Mode Printer Option Media Path
Tear-Off Printers with any
printer options can
use Tear-Off mode
Peel-Off Peel, Liner take-up,
or Rewind
Peel-Off (with Liner
Take-Up)
Liner take-up
Rewind
Red solid lines = media, Blue dotted lines = backing only

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
