Corrective Maintenance
Stepper Motor Assembly
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
7. Which model of printer are you working on?
Remove the Wireless Board
1.
2.

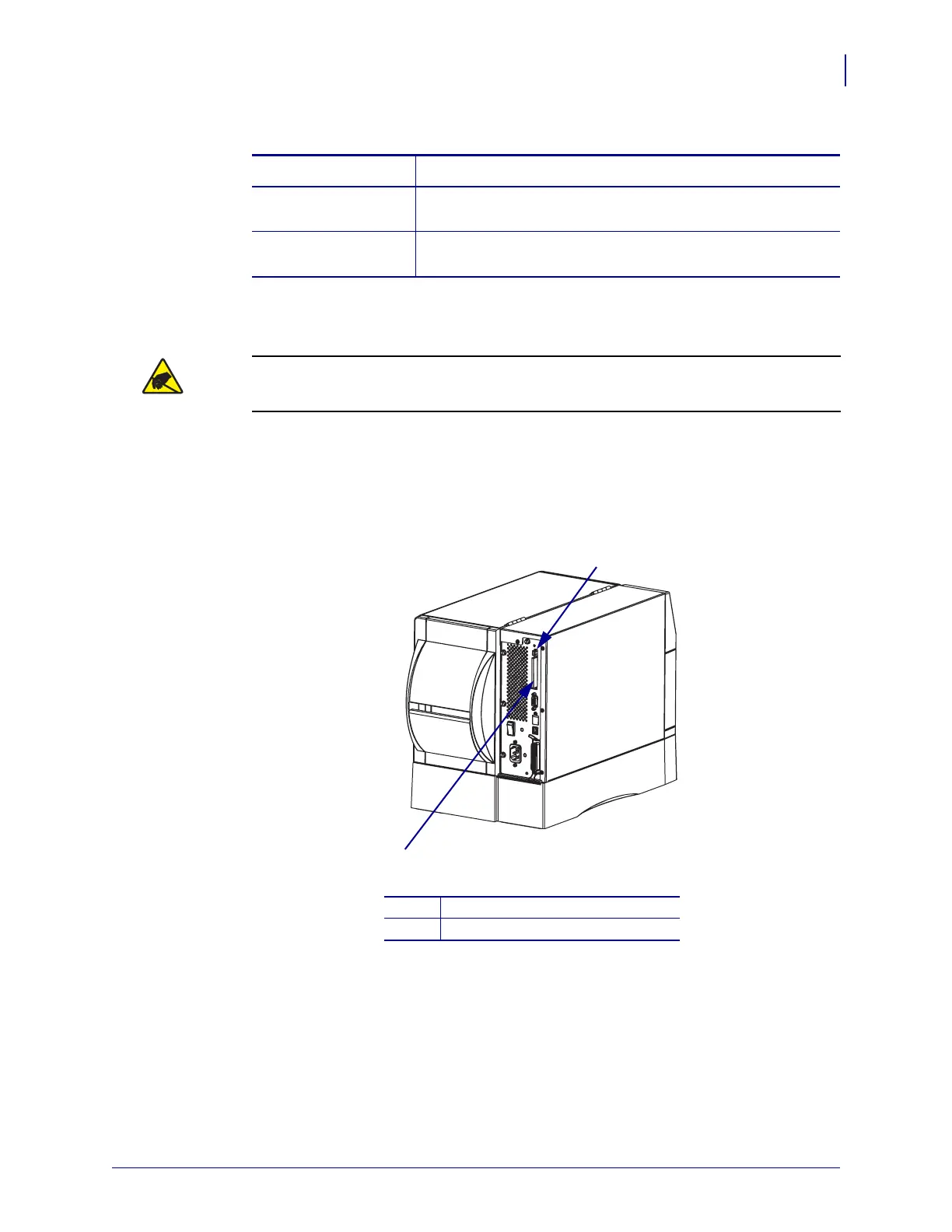

See Figure 125. Press in on the eject button to remove the radio card.
Figure 125 • Remove the Radio Card
If you have a… Then…
ZM400/ZM600
without wireless board
Go to Gain Access to the Power Supply on page 261.
ZM400/ZM600
with wireless board
Continue with Remove the Wireless Board.
Caution • Observe proper electrostatic safety precautions when handling
static-sensitive components such as circuit boards and printheads.
Connect yourself to an antistatic device.
1
Eject button
2
Radio card
2
1

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
