3. See Figure 126. Remove the two lower mounting screws and then remove the wireless
board from the main logic board (MLB).

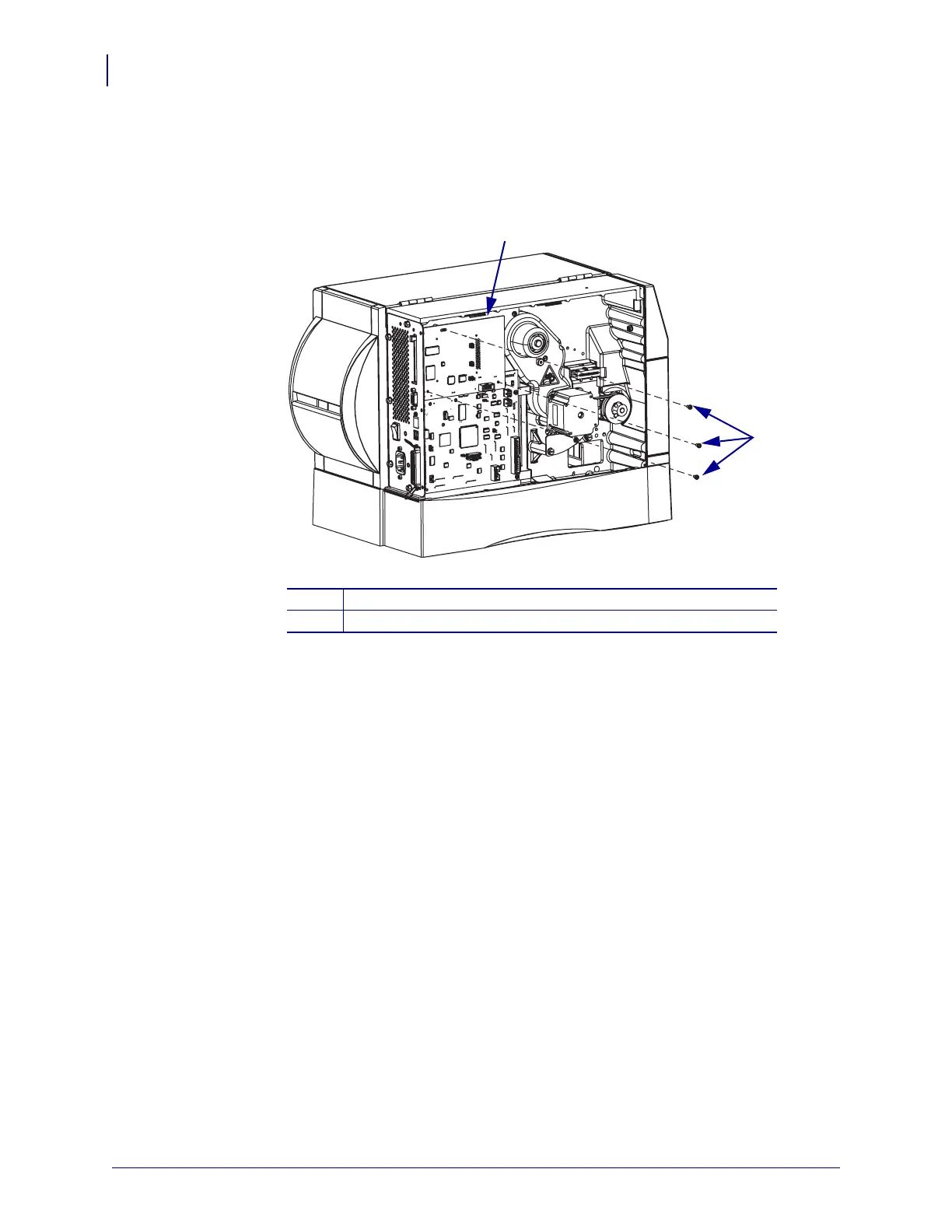

Figure 126 • Remove the Wireless Board
1
Wireless board
2
Mounting screws (3)
