Ribbon Take-Up Spindle Clutch
Ribbon Take-up Spindle Clutch
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
3. See Figure 131. Remove the screw and washer securing the electronics cover.

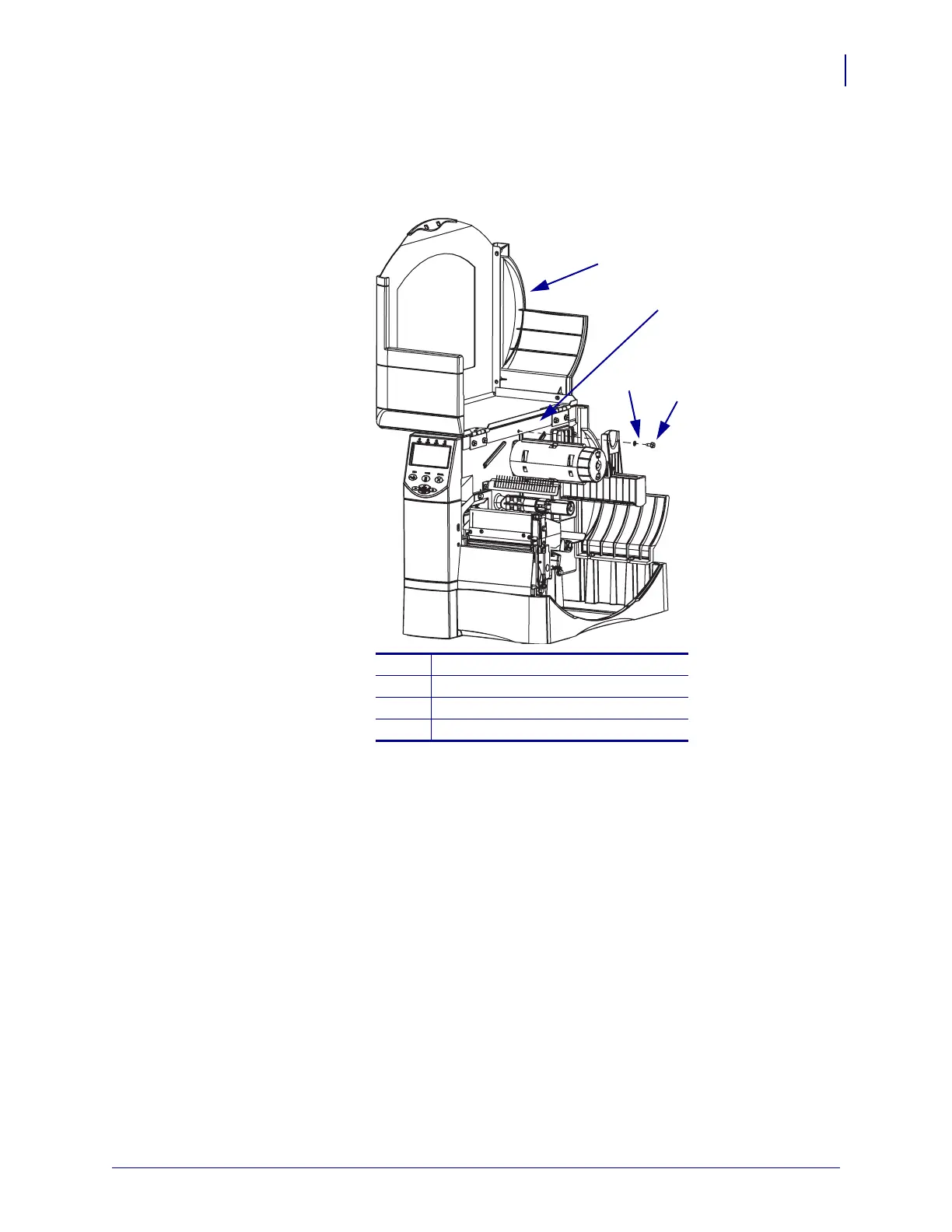

Figure 131 • Locate the Electronics Cover Mounting Screw
4. Close the media door.
1
Media door
2
Electronics cover
3
Washer
4
Mounting screw
1
2
3
4
