Ribbon Take-Up Spindle Clutch
Ribbon Take-up Spindle Clutch
268
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

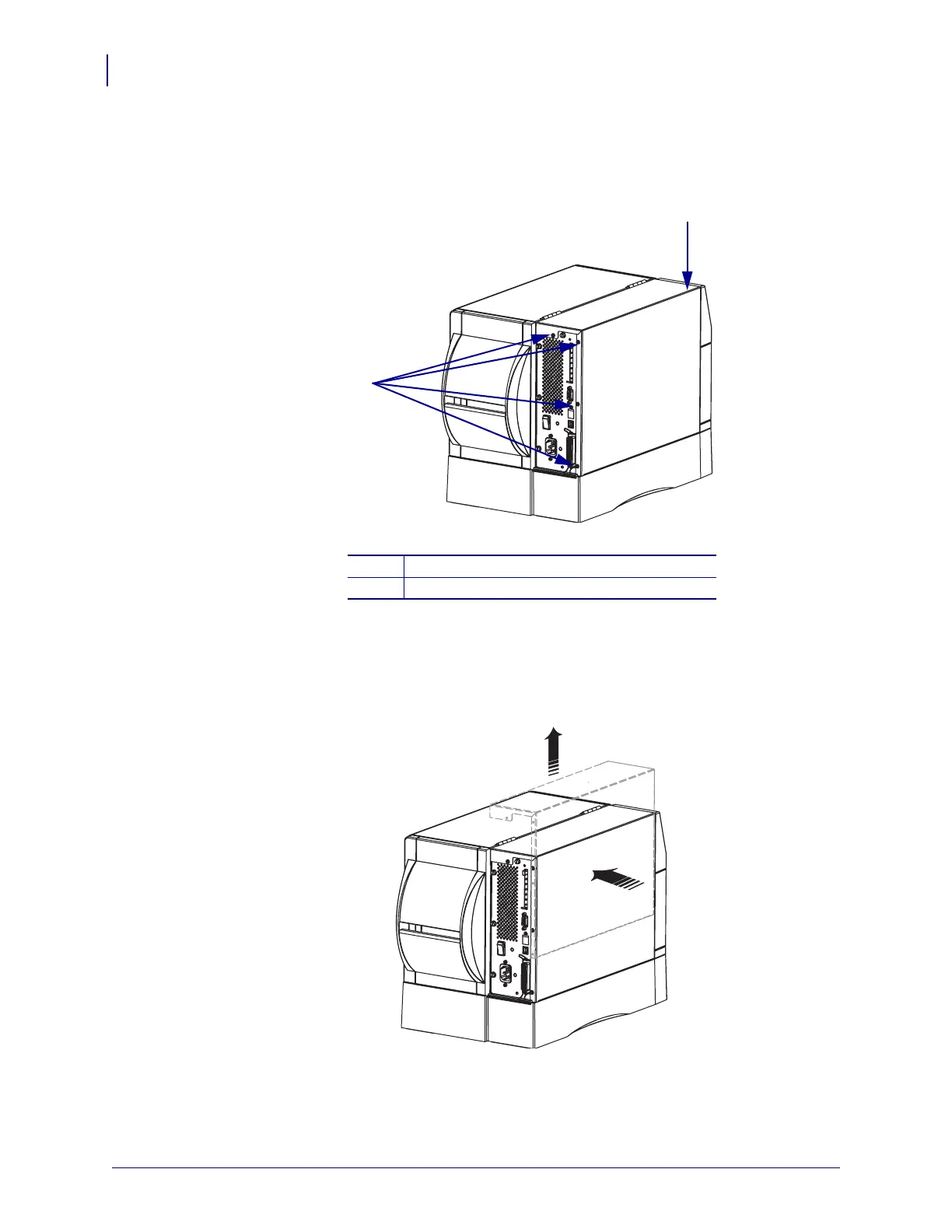

5. See Figure 132. Remove the four mounting screws on the rear of the printer.
Figure 132 • Remove the Electronics Cover Mounting Screws
6. See Figure 133. Remove the electronics cover by pressing in on the electronics cover with
the palm of your hand, and then lifting up on the cover.
Figure 133 • Remove the Electronics Cover
1
Electronics cover
2
Mounting screws (4)
2
1
