Corrective Maintenance
Printhead Cables
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
4. See Figure 55. Remove the thumbscrew to loosen the printhead fork assembly.

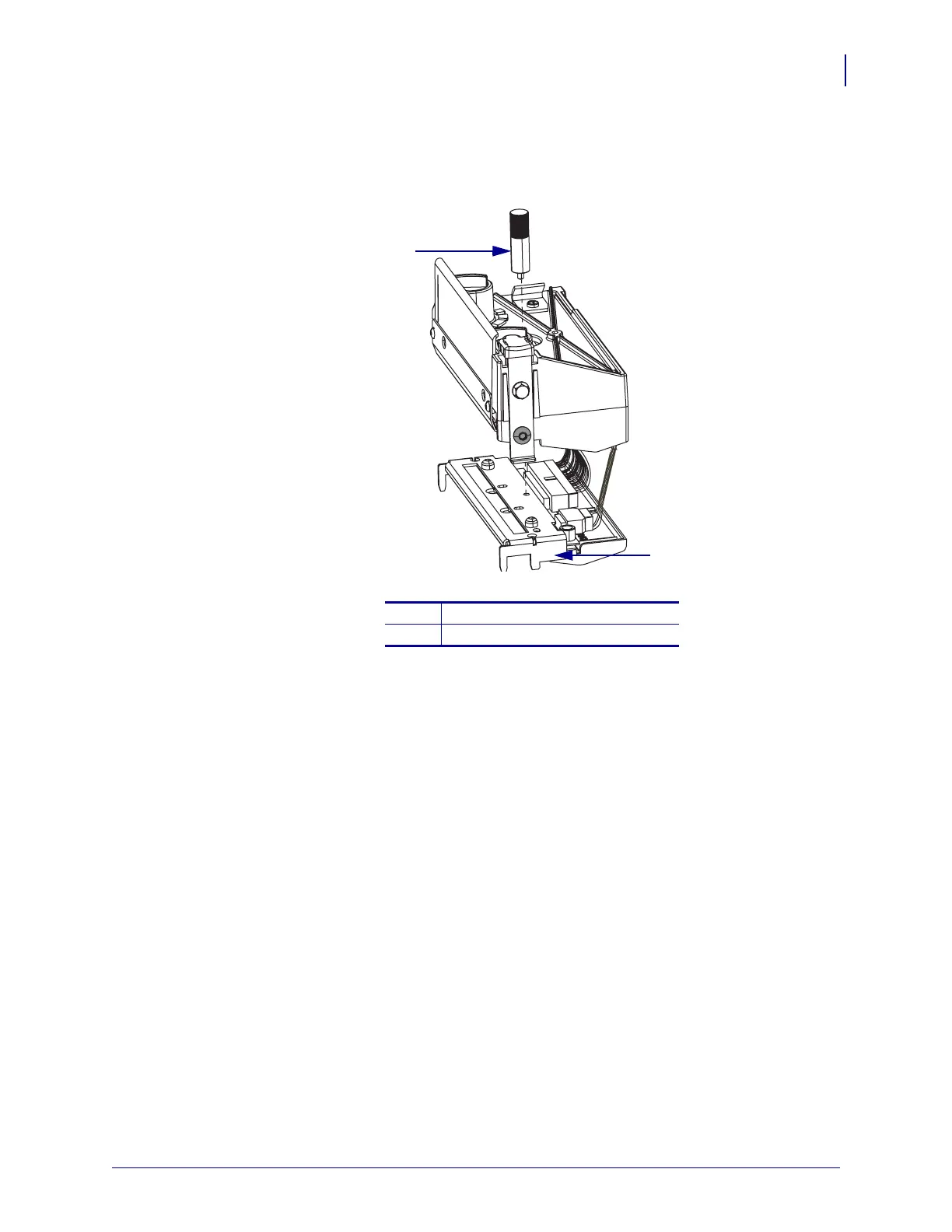

Figure 55 • Remove the Thumbscrew
1
Thumb screw
2
Printhead fork assembly
1
2
