Zebra ZM400 Series

Corrective Maintenance
Printhead Cables
174
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
4. See Figure 52. Pull the top of the shield away from the main frame and fold it down to
access the printhead connector.

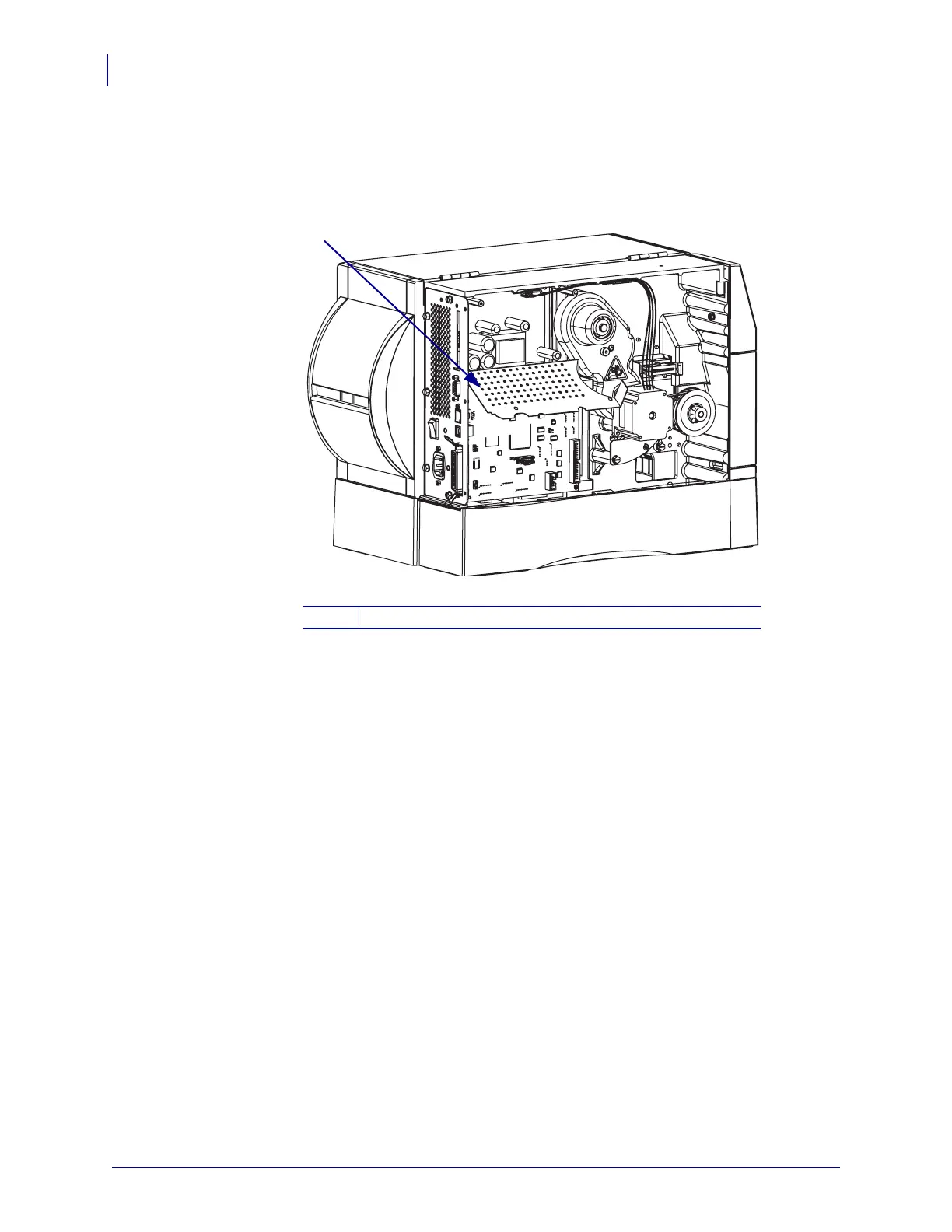

Figure 52 • Gain Access the Power Supply
1
Shield
1
