Zebra ZM400 Series

Corrective Maintenance
Platen Coupling
376
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
2. See Figure 235. Push the drive shaft through to the media side of the printer and then
remove and discard it.

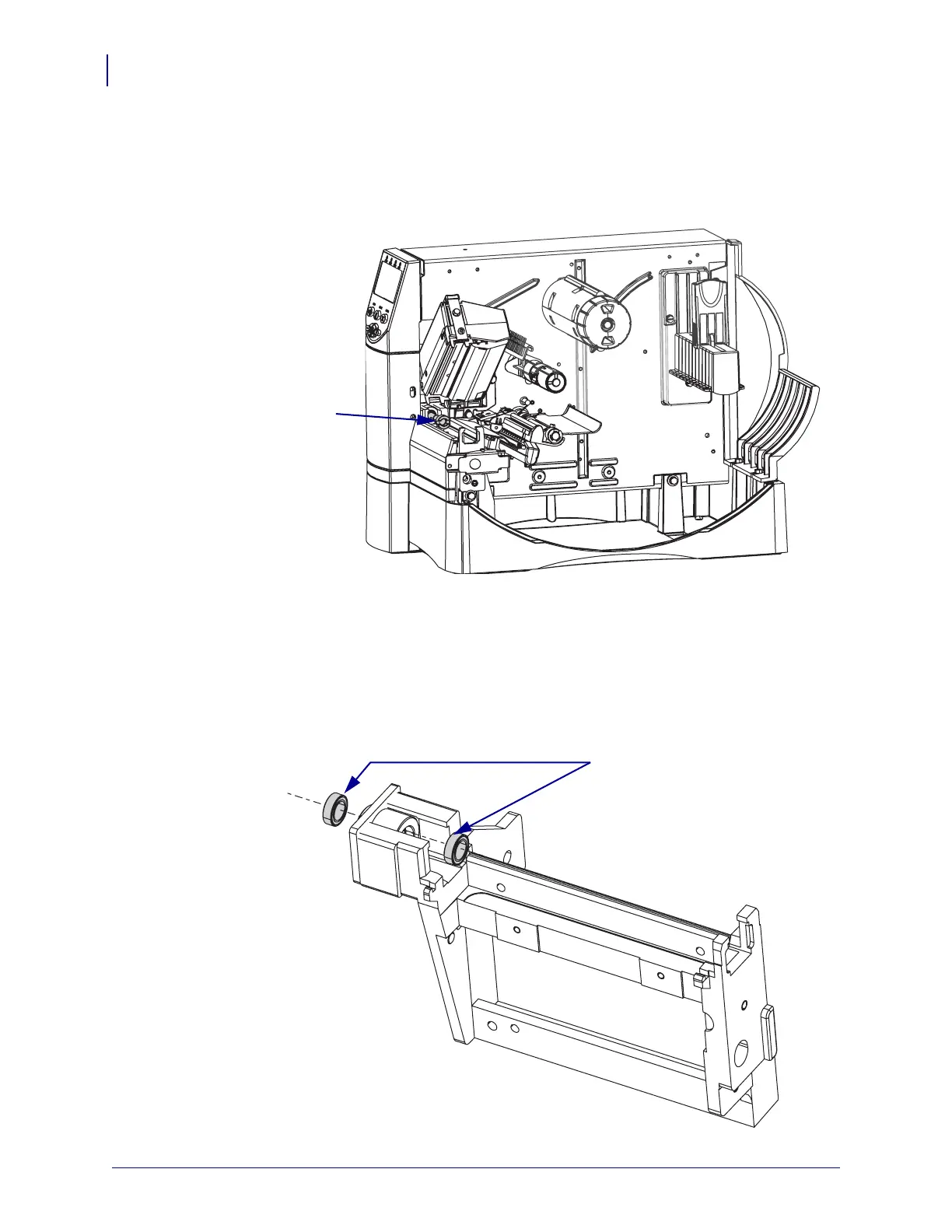

Figure 235 • Push the Drive Shaft Through
3. See Figure 236. Using a bent tip scribe or small hooked tool, remove the roller bearing
from the media side of the platen housing.
4. Using a bent tip scribe or small hooked tool, remove the roller bearing from the
electronics side of the platen housing.
Figure 236 • Remove the Roller Bearings
Drive Shaft
Ro
ll
er Bearings
(
2
)
