Zebra ZM400 Series User Manual

341
Corrective Maintenance
Peel Rewind Option
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
2. See Figure 203. Remove the two screws that attach the rear cover to the base.

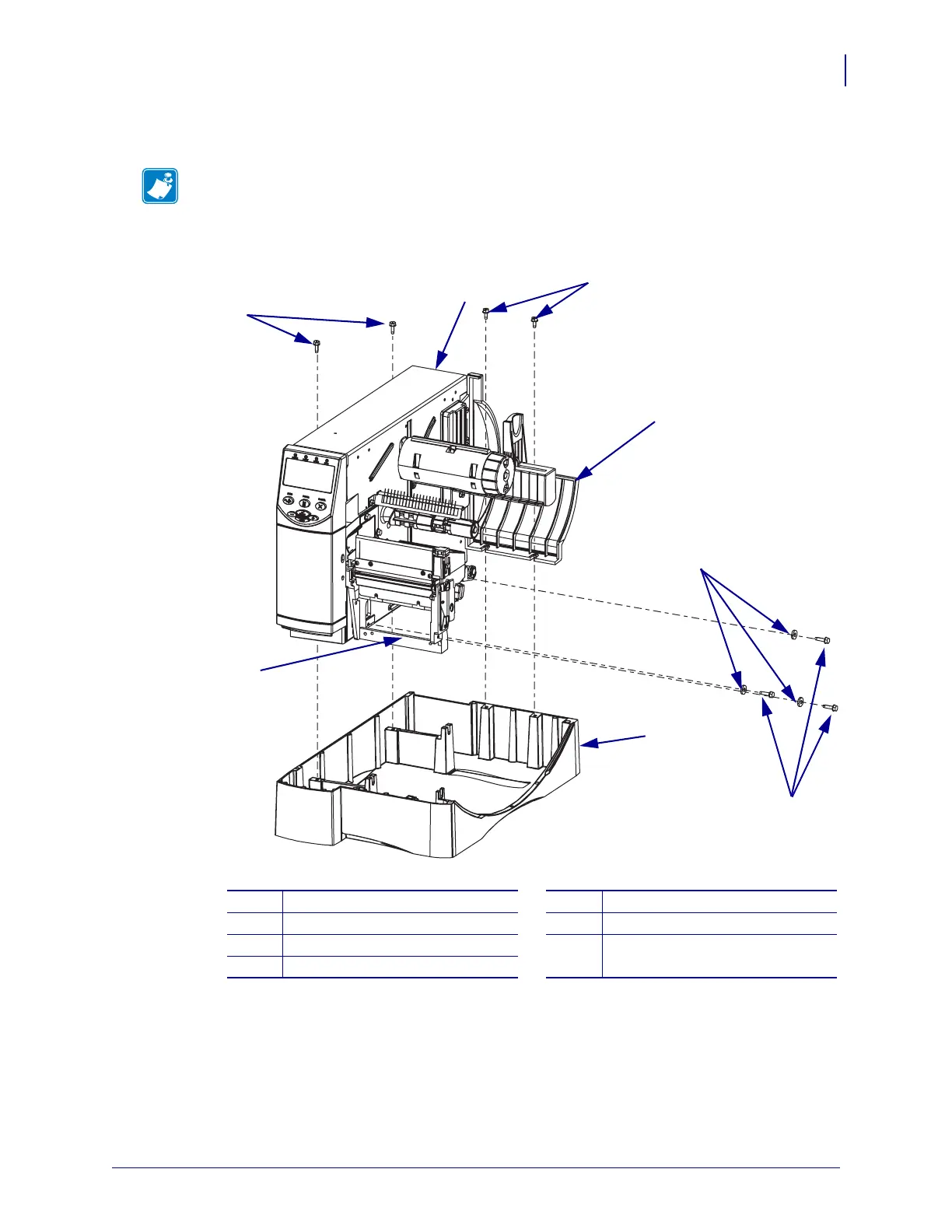

Figure 203 • Remove the Old Base
3. Remove the screw and flat washer securing the platen housing to the base.
4. Remove the four screws and two flat washers securing the main frame and end cap.
5. Lift the main frame off the base assembly.
Note • Do not remove the screws attaching the platen housing to the main frame.
1
Main frame
5
Main frame mounting screws (5)
2
Rear end cap mounting screws (2)
6
Base
3
Rear end cap
7
Platen housing
4
Mounting flat washers (3)
1
2
3
5
5
4
6
7

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
