Corrective Maintenance
234
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

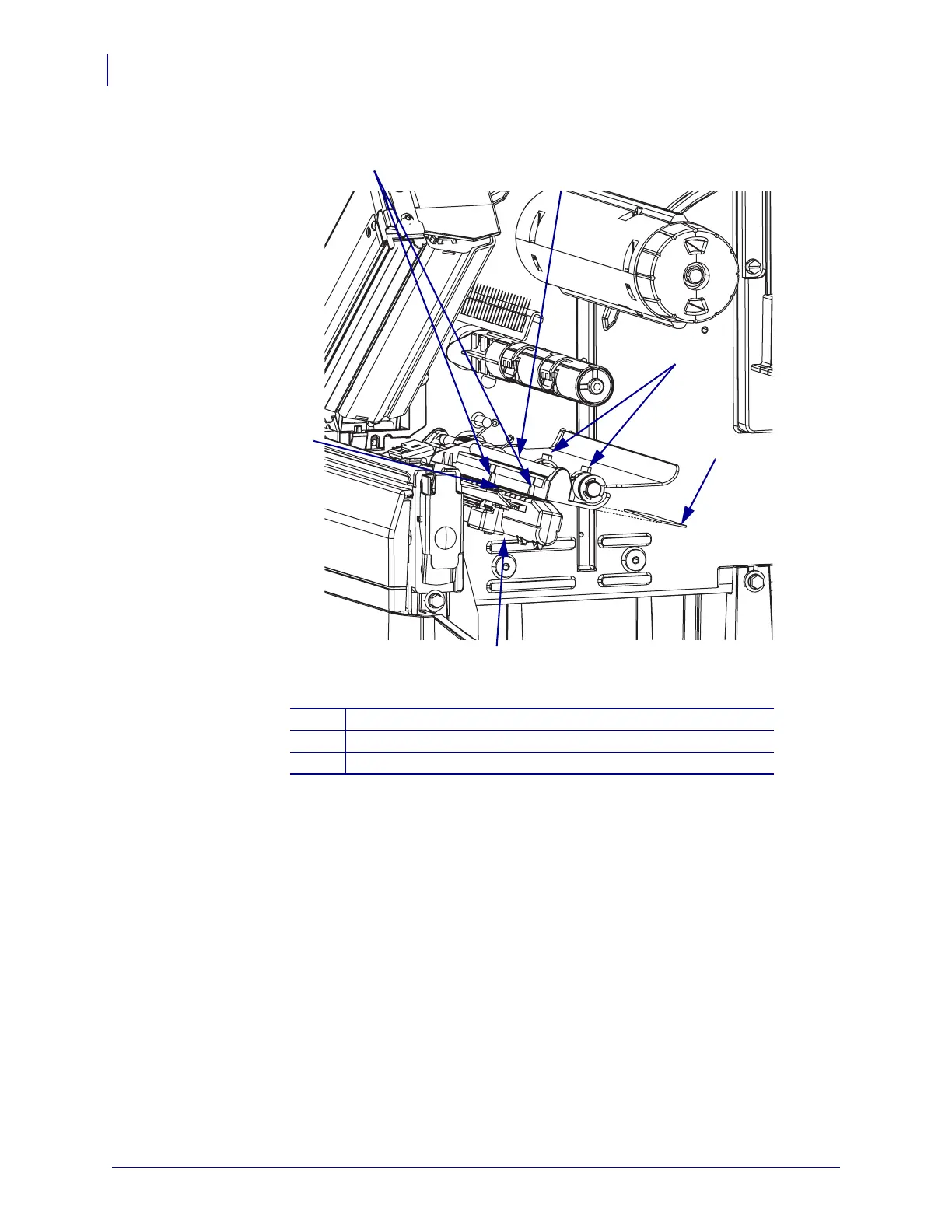

Figure 101 • Adjust the ZM600 Upper Media Sensor
2. Turn on (l) the printer.
1
Mounting screws (2)
2
Gapping shim
3
Notches (2)
1
2
2
3
Squeeze
Here
Squeeze
Here
