Corrective Maintenance
Platen Coupling
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A

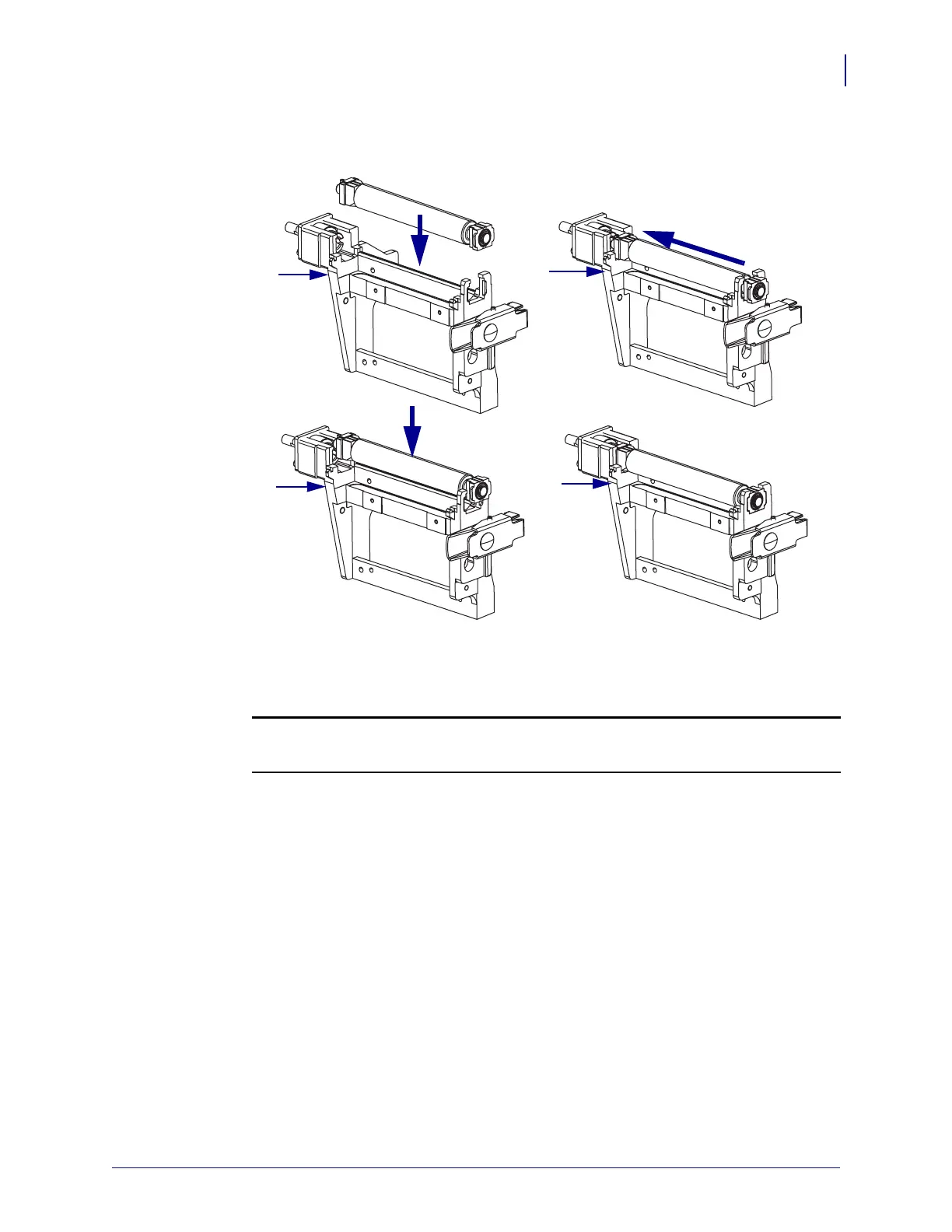

Figure 241 • Install the Platen Roller Assembly
3. Turn the latch assembly to the vertical position to secure the platen roller assembly.
4. Clean the platen roller using the Zebra preventative maintenance kit or equivalent.
5.
6.
Reconnect the AC power cord and data cables.
7. Turn on (l) the printer.
a
b
c
d
Caution • When you are loading media or ribbon, remove all jewelry that could come
into contact with the printhead or other printer parts.
Reinstall the media and ribbon.
