Drawings and Parts
Media Door
442
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

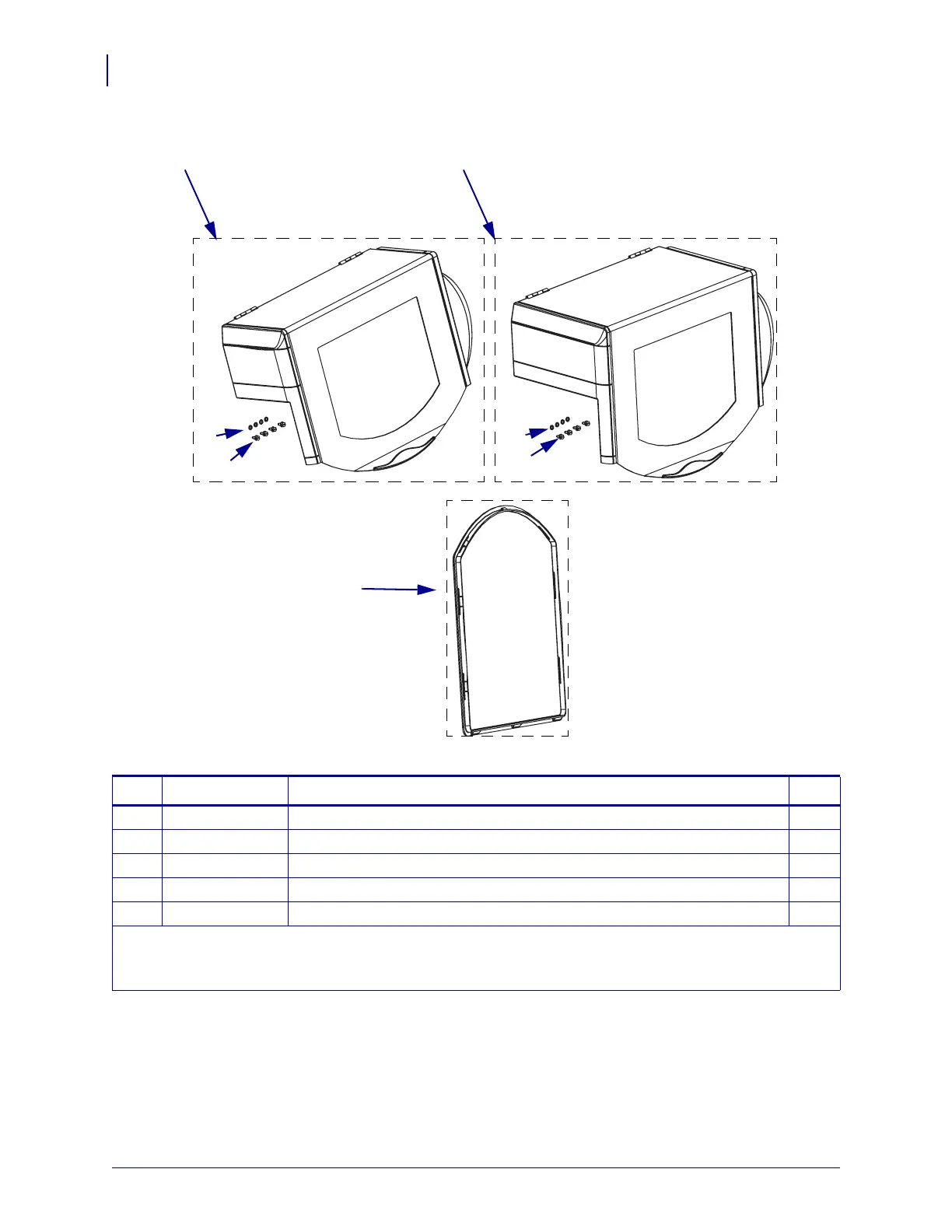

Figure B • Media Door
1 2
5
4
3
4
3
Table B • Media Door
Item Part Number Description Qty
1
79833M
ZM400 Media Door Maintenance Kit 1
2
79834M
ZM600 Media Door Maintenance Kit 1
3
HW78814
Screw, M4 × 0.7 × 10 (sold in quantities of 5) 4
4
HW43482
Lock Washer, (sold in quantities of 25) 4
5
79863M
ZM400/ZM600 Media Window Kit 1
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above
