Drawings and Parts
Wired Ethernet Board
460
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

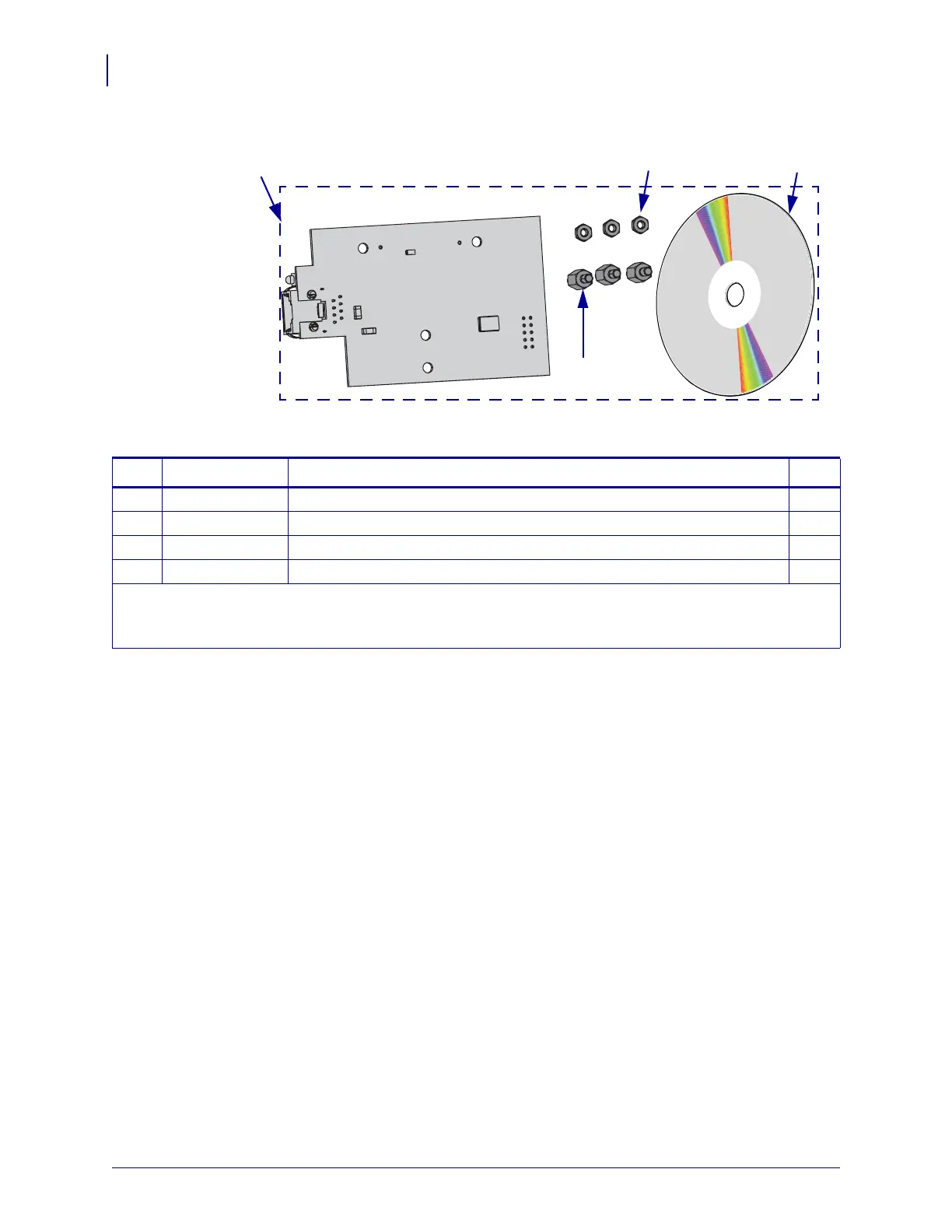

Figure R • Wired Ethernet Board/Internal PrintServer
1
2
4
3
Table R • Wired Ethernet Board
Item Part Number Description Qty
1
79823
ZM400/ZM600 Wired Ethernet Board Kit 1
2
HW10460
Nut, M3 × 2.4 × 5.5 (sold in quantities of 5) 3
3
45638-xxx
Connectivity Solutions CD 1
4
HW79656
Standoff, M3 × 0.5 × 10 3
Bold = Part available for purchase
Light italic = Part not available for individual purchase, listed and shown for reference only
Boxes = Parts contained in kits listed above
