Zebra ZM400 Series User Manual

85
Operations
Control Panel Parameters
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A

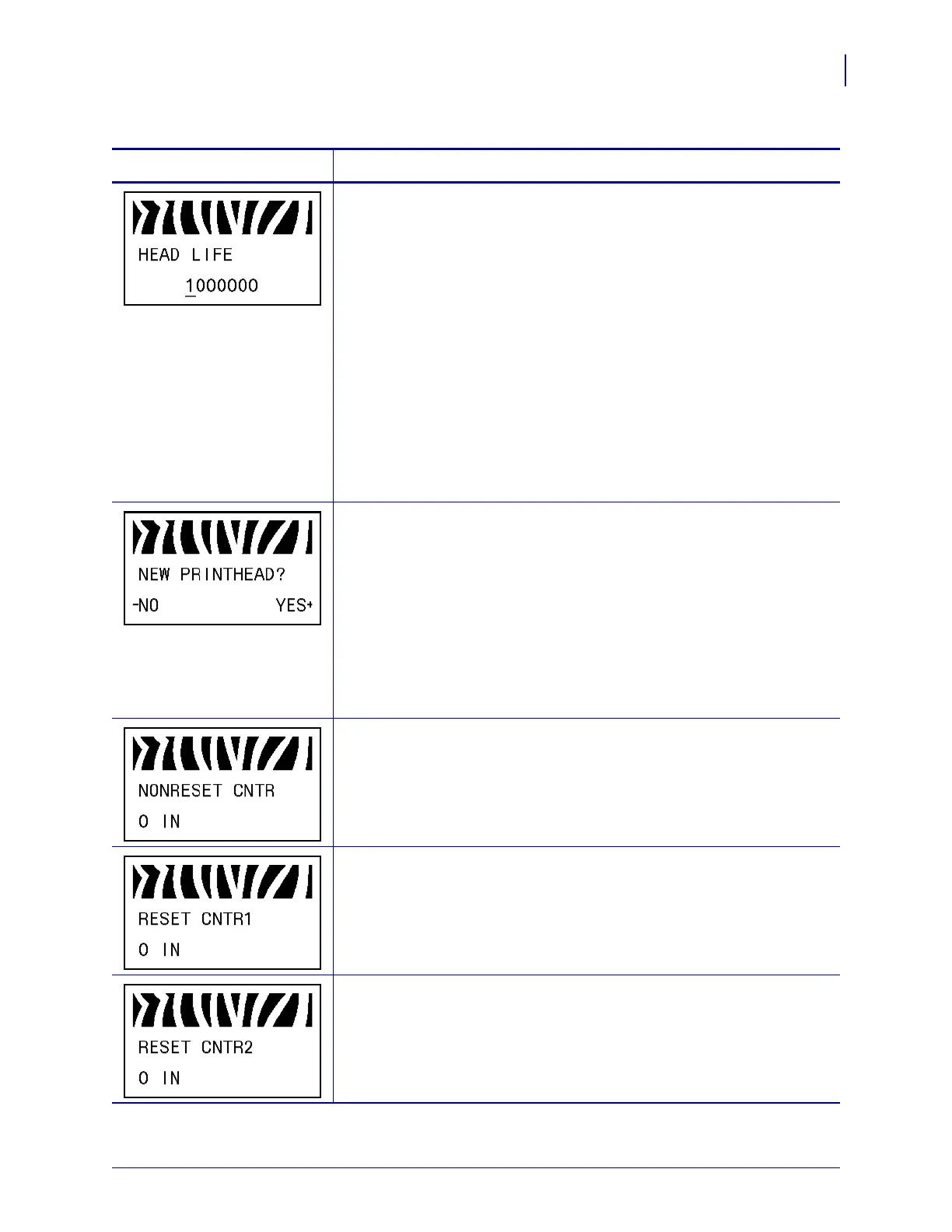

Set Printhead Life for Early Warning
This parameter appears only when Early Warning for Maintenance is
enabled. Set this value to the number of inches of media that the printhead
is expected to print.
Default Value: 1,000,000 inches
Range: 100 to 1,000,000 inches
To change the value shown:
1. Press SELECT to select the parameter.
2. Press
MINUS (-) to move the cursor.
3. Press
PLUS (+) to increase the value of the digit.
When the printhead reaches the set length,
WARNING REPLACE
HEAD
appears on the LCD. If the alert function is enabled, the printer
generates an alert.
4. Press
SELECT to accept any changes and deselect the parameter.
Reset Printhead Life Counter for Early Warning
This parameter appears only when Early Warning for Maintenance is
enabled.
To reset the printhead life counter:
1. Press SELECT to select the parameter.
2. Did you replace the printhead?
• If you replaced the printhead, press
PLUS (+) to select YES.
• If you did not replace the printhead, press
MINUS (-) to select NO.
3. Press SELECT to accept any changes and deselect the parameter.
View Non-Resettable Counter
This parameter displays the total length of media that the printer has
printed. You can use ZPL commands to change the unit of measure for this
counter. For the commands, refer to the ZPL Programming Guide.
View User-Controlled Counter 1
This parameter displays the total length of media that the printer has printed
since this parameter was last reset. You can use ZPL commands to change
the unit of measure and reset this counter. For the commands, refer to the
ZPL Programming Guide.
View User-Controlled Counter 2
This parameter displays the total length of media that the printer has printed
since this parameter was last reset. You can use ZPL commands to change
the unit of measure and reset this counter. For the commands, refer to the
ZPL Programming Guide.
Table 12 • Printer Parameters (Page 8 of 24)
Parameter
Action/Explanation

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
