10. Light processor + light pipe assembly
Image 10-3

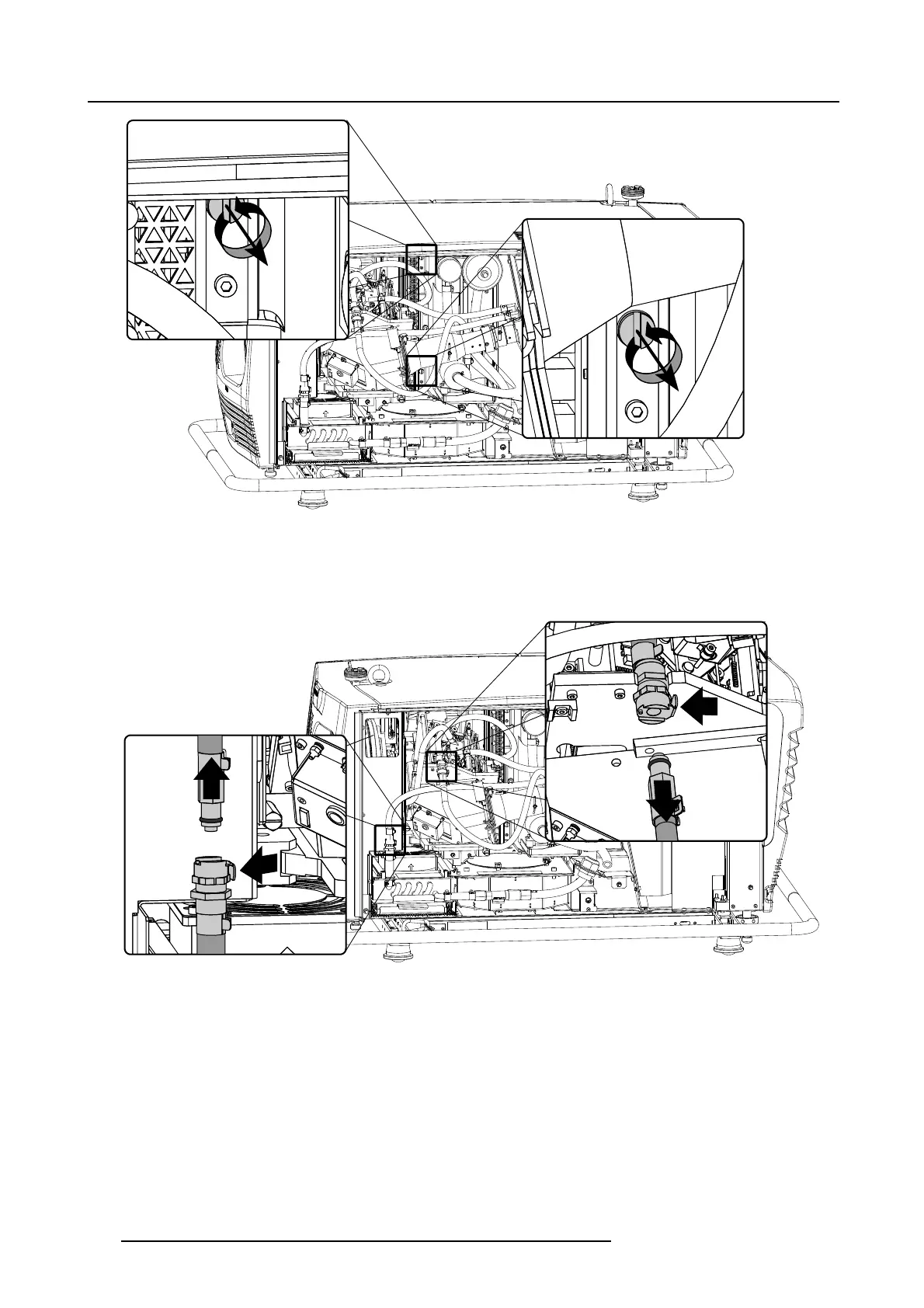

4. Uncouple the cooling circuit from the light processor by unplugging the two valved fittings as illustrated. One valved fitting is
located in the tube coming from the pump and leading to the light processor and the other valved fitting is located in the tube
coming from the light pipe entrance and leading to the heat exchanger.
Tip: Sometimes a little cooling liquid will be spilled. Wrap a small cloth around the valved fitting while uncoupling to absorb
the spilled cooling liquid.
2
1
2
1
Image 10-4
5. Hold the light processor by the handles and gently pull the light processor out of its compartment.
104
R59770072 FLM SERIES 19/03/2007
