15. Vertical and Horizontal shift motors
15.1 Removing the vertical shift motor
Before you can start with the removal of the motor, the lens holder must be built out, see "Removing the lens
holder", page 130 for more explanation on how to build out.
Necessary tools
•Allenkey3mm
•Allenkey2.5mm
•Allenkey2mm
•Allenkey1.5mm
How to build out
1. Remove the 4 screws a and take off cover b.
a
a
a
a
b
c
d
e

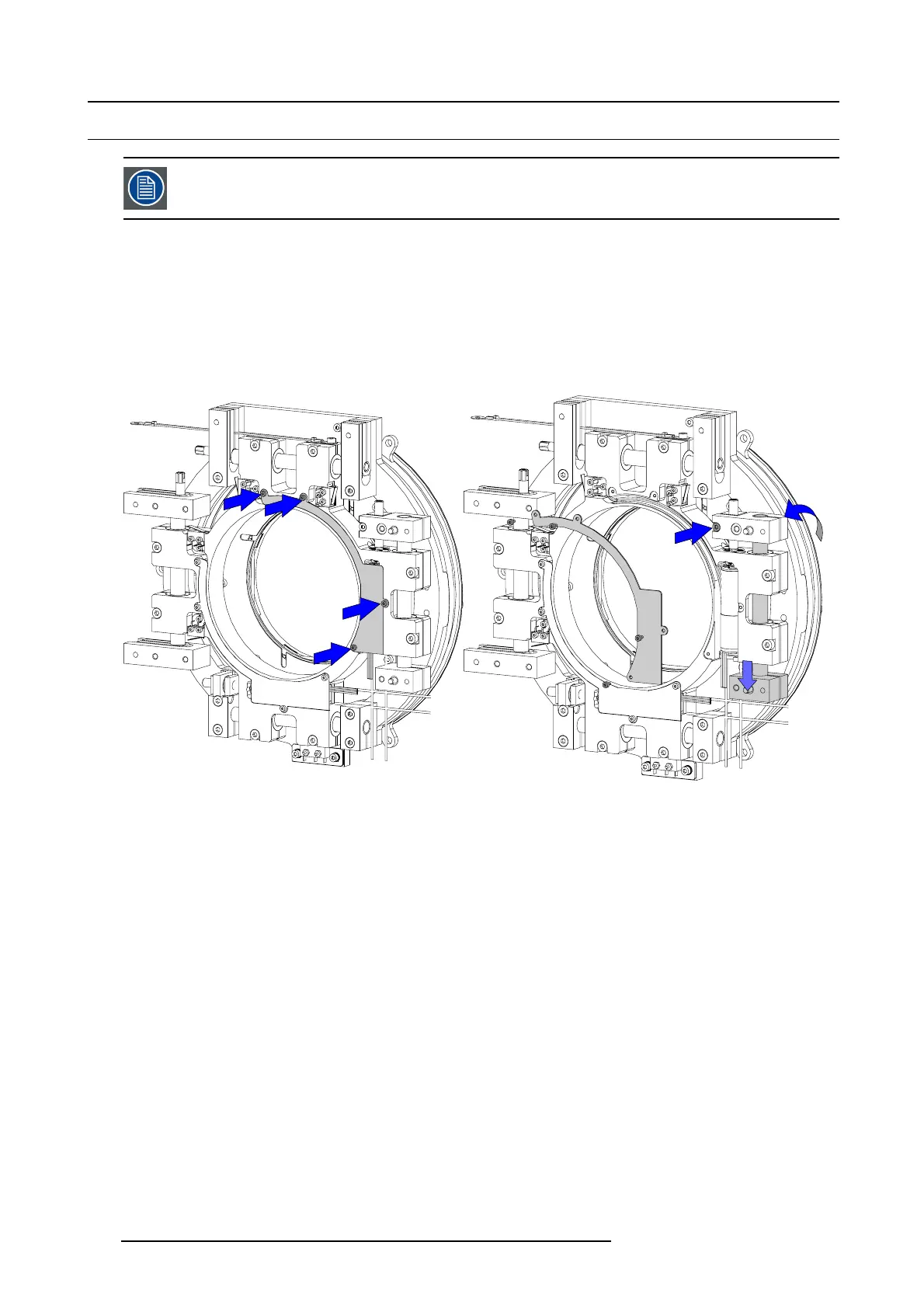

Image 15-2
Motor access
2. Turn out screw c.
3. Loosen screw d (at the back side of this block) and slide the axe out of that block (e).
4. Take off block A.
140
R59770072 FLM SERIES 19/03/2007
