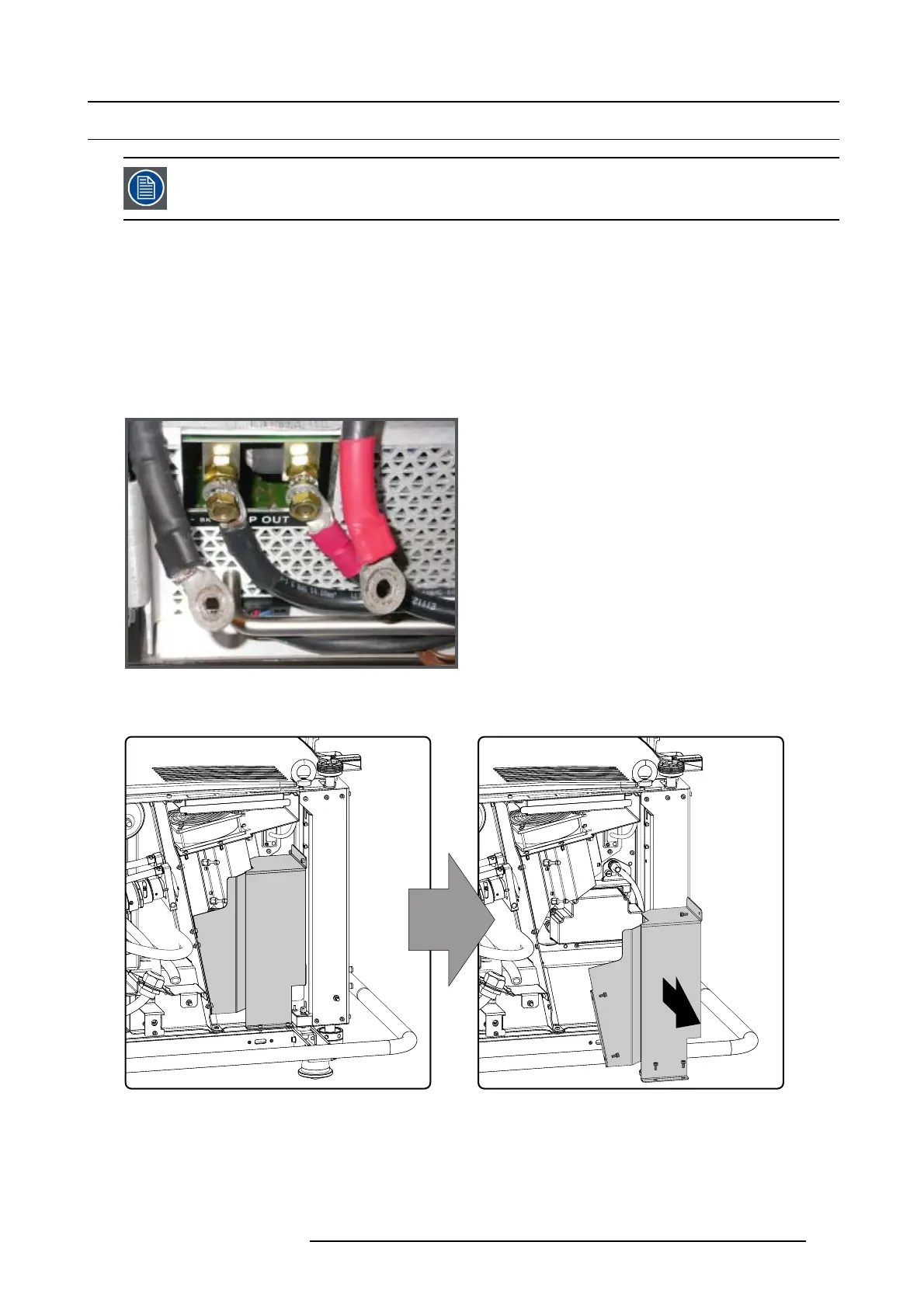

28. Start pulse generator
28.2 Removal of the start pulse generator
To remove or install the start pulse generator you have to remove the side cover, the back cover, the lamp
cover and the lamp house first.
Necessary tools
10 mm nut driver.
•3mmAllenkey.
6 x 120 mm flat screw driver.
How to remove the start pulse generator?
1. Disconnect the SPG cables from the “LAMP OUT” pins of the LPS module. Use for that a 10 mm nut driver.
Caution: Do not loose the washers which fits between the fixation nuts and the cable eye.
Tip: Place the washers and nuts back upon the output pins.
Image 28-2
2. Remove the cover of the start pulse generator as illustrated. This cover is secured with 5 hexagon socket head cap screws. Use
for that a 3 mm Allen key.
Image 28-3
3. Release the 3 captive screws (
S) of the start pulse generator as illustrated. Use for that a flat screw driver.
R59770072 FLM SERIES 19/03/2007
307
