15. Vertical and Horizontal shift motors
15.4 Mounting the new horizontal lens motor
Necessary tools
•Allenkey3mm
•Allenkey2.5mm
•Allenkey2mm
•Allenkey1.5mm
How to mount

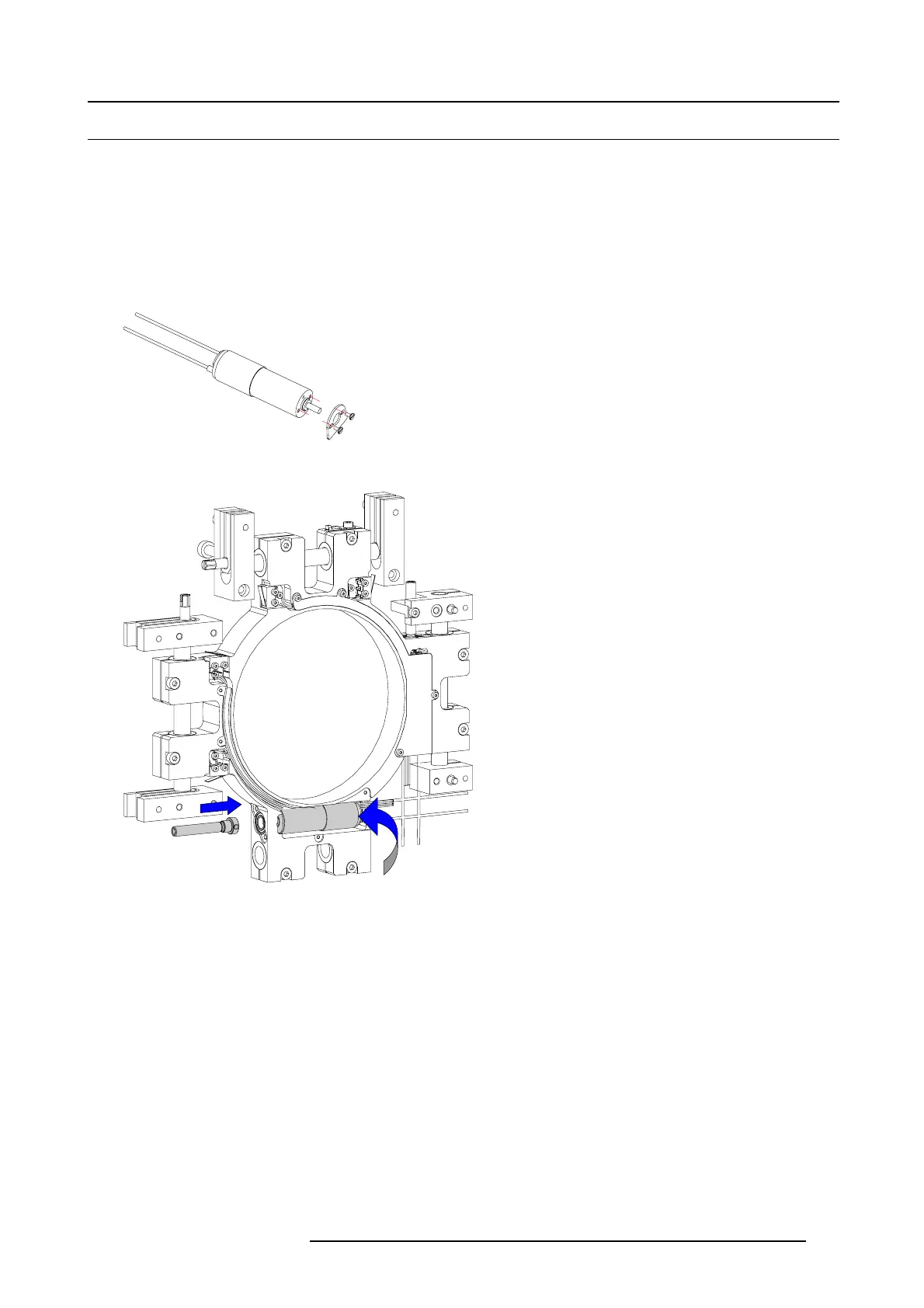

1. Fixate the small plate with 2 screws on the motor. Fold the wires in the same direction of the rounded side of the plate.
Image 15-15
2. Insert the motor in its compartment with the rounded side of the mounted plate upwards.
Image 15-16
Mount new motor
3. Turn in both axe fixation screws A and secure the axe on the motor axe with the set screw B.
R59770072 FLM SERIES 19/03/2007
