Barco FLM series - Removal of the Input Cover

6. Removal and installation of projector covers
6.4 Removal of the input cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
7 mm flat screw driver.
How to remove the input cover of the projector ?
1. Release the two captive screws at the top and bottom left side of the input cover, using a flat screw driver.

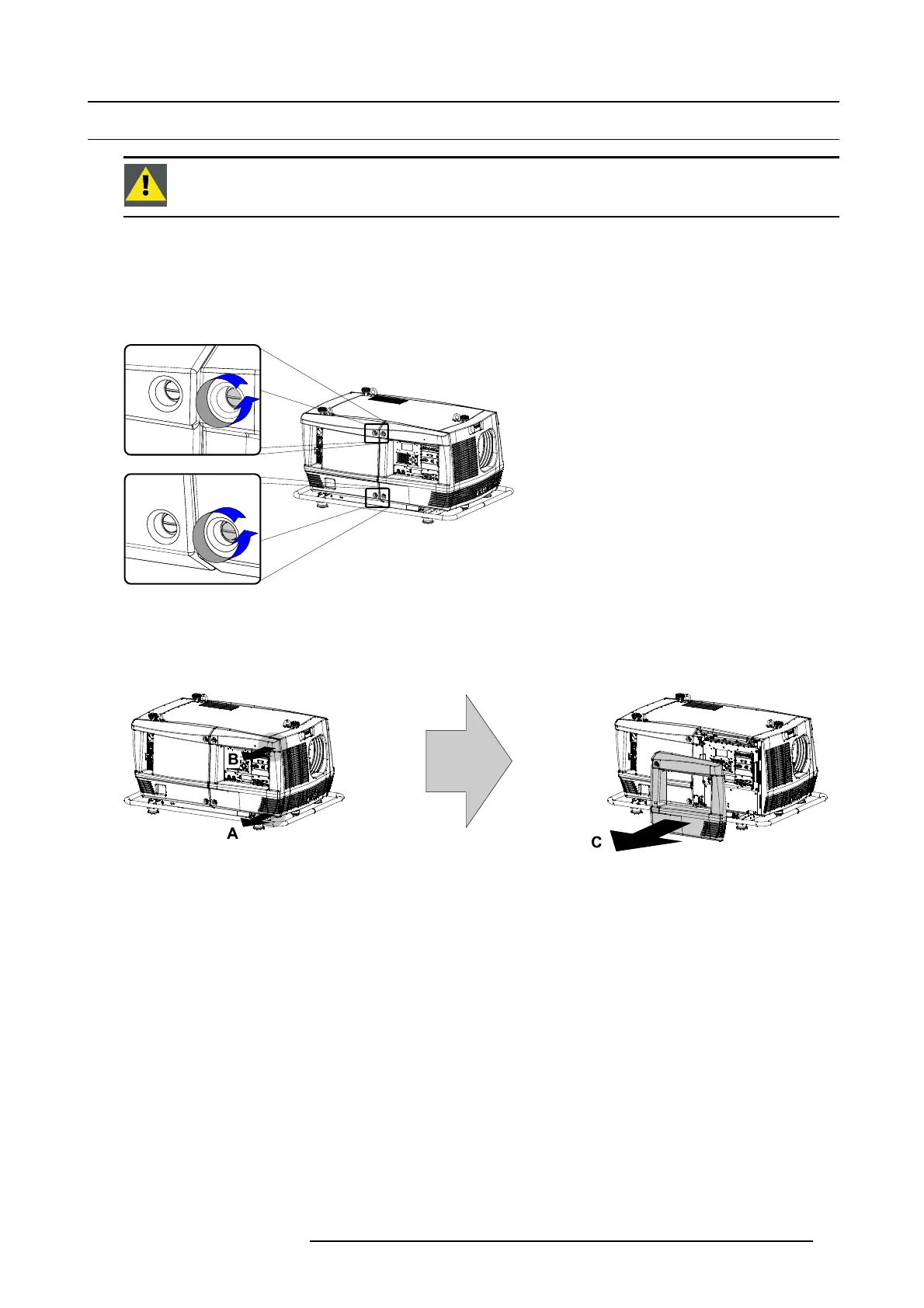

Image 6-7
2. Remove the input cover from the projector doing the following:
a) gently pull out the right bottom corner (A) of the input cover,
b) then gently pull out the right top corner (B) of the input cover,
c) then move the input cover away from the projector (C).
Image 6-8
