6. Removal and installation of projector covers
6.9 Installation of the front cover
Necessary tools
7 mm flat screw driver.
How to install the front cover of the projector ?
1. Check if the front filter is present.
2. Ensure that no lens is mounted.

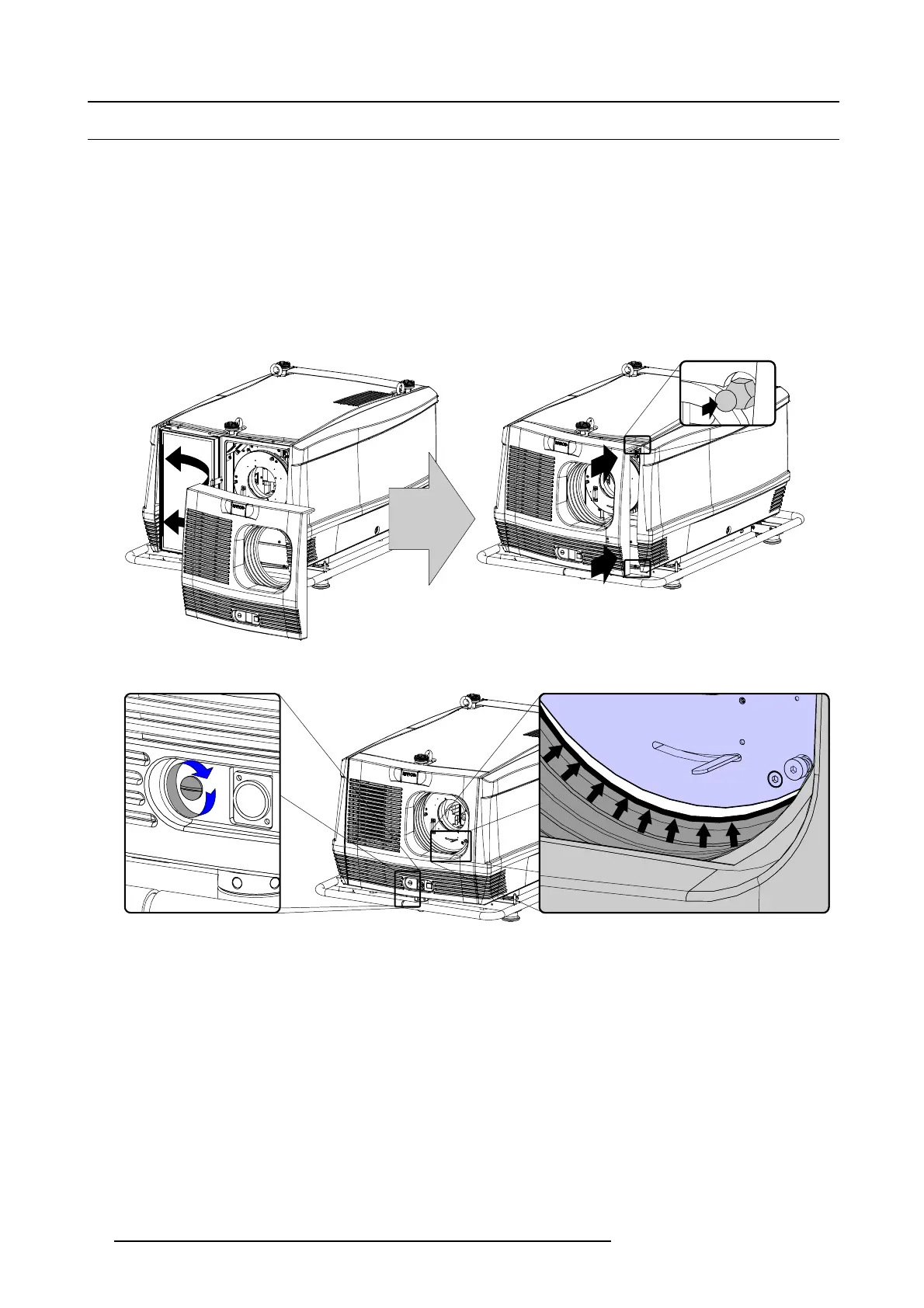

3. Install the front cover of the projector doing the following:
a) first hook in the side of the front cover at the front filter,
b) then gently push the other side of the front cover into position,
c) ensure that the locking studs in the corners click into their receivers.
Image 6-15
4. Secure the front cover by locking the captive screw in the middle at the bottom of the front cover.
Image 6-16
5. Reinstall the rubber dust ring around the lens holder. See image 6-16.
80
R59770072 FLM SERIES 19/03/2007
