6. Removal and installation of projector covers
6.2 Removal of the side cover
CAUTION: Remove the side cover of the projector only in a clean and dust free area. Never remove the side
cover in an area which is subject to airborne contaminants such as that produced by smoke machines or
similar.
Necessary tools
7 mm flat screw driver.

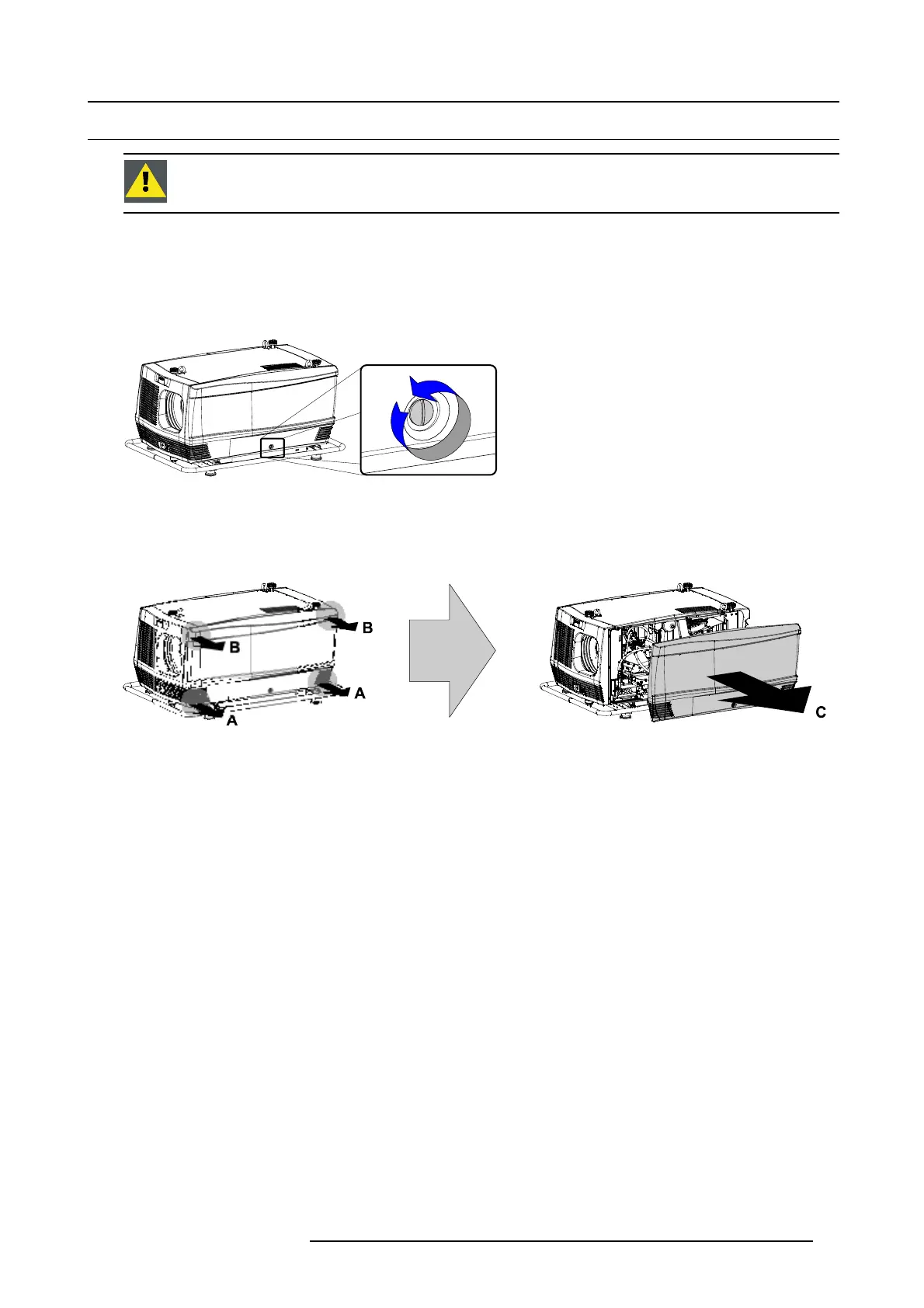

How to remove the side cover of the projector ?
1. Release the captive screw at the middle bottom of the side cover, using a flat screw driver.
Image 6-3
2. Remove the side cover from the projector doing the following:
a) gently pull out the bottom corners (A) of the side cover,
b) then gently pull out the top corners (B) of the side cover,
c) then move the side cover away from the projector (C).
Image 6-4
R59770072 FLM SERIES 19/03/2007 73
