24. Fan replacements
24.1.2 Replacing the old fan with a new fan
Necessary tools
Allen key 3 mm
How to replace
1. Turn out the 4 socket head cap screws (A) on top of the fan.
A
B
C
D

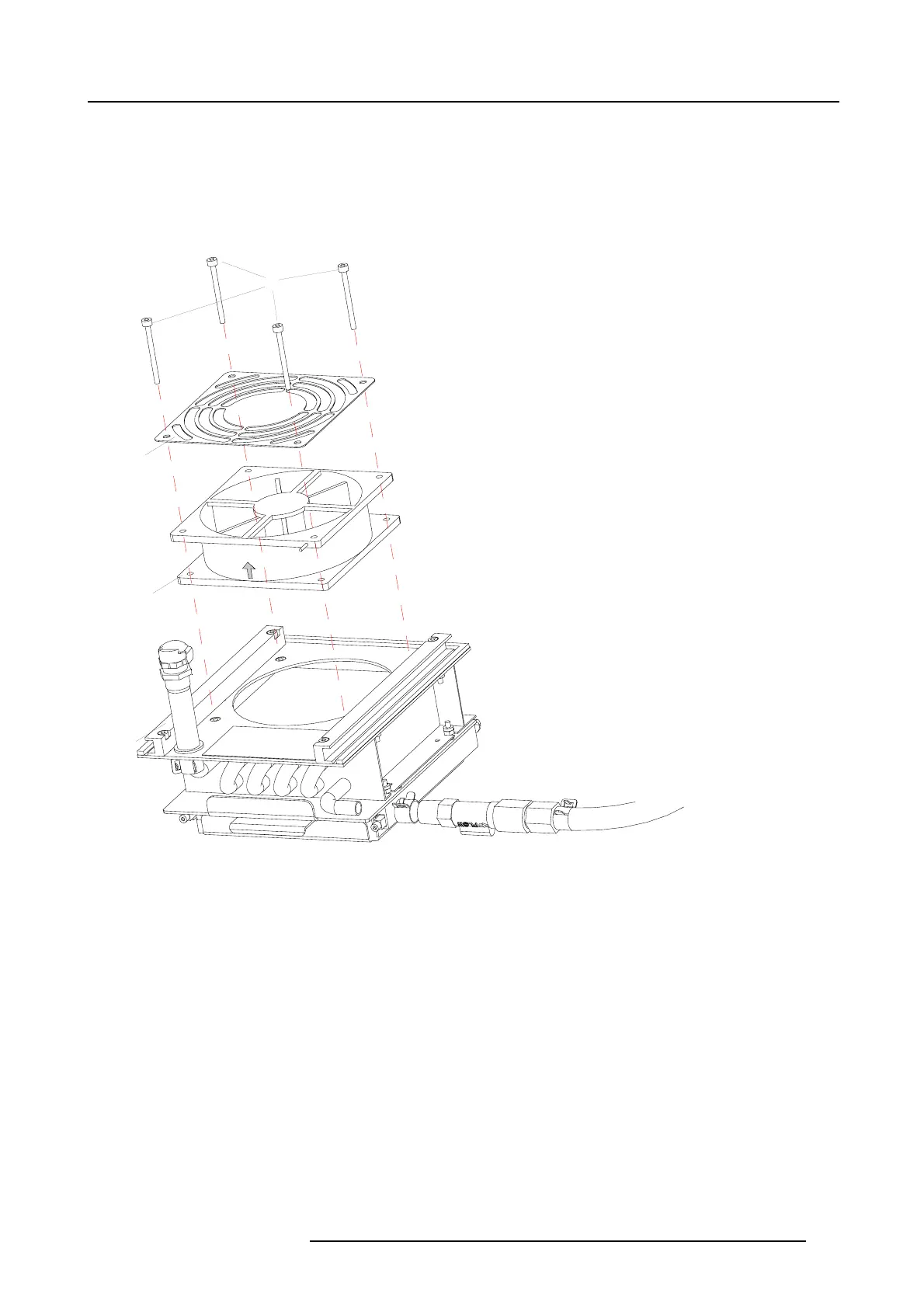

Image 24-9
Fan replacement
2. Take off the fan cover plate (B).
3. Remove the fan (C).
4. Place a new fan (C) on the assembly with the arrow indication on the fan upwards.
5. Place the fan cover plate on the fan (B) .
6. Insert the 4 socket head cap screws (A) and secure the fan position.
R59770072 FLM SERIES 19/03/2007
237
