Barco FLM series

16. FLM liquid cooling circuit
16.6 Filling the liquid cooling circuit
This procedure can only be used to fill an empty (drained) cooling circuit.
Necessary tools
• Half a meter of plastic tube with male valved fitting.
• Half a meter of plastic tube with female valved fitting.
• Syringe connected with short tube with male valved fitting.
• Bottle with cooling liquid.
• Empty bottle with a volume of 1 liter.
• Cloths.
How to fill the liquid cooling circuit ?

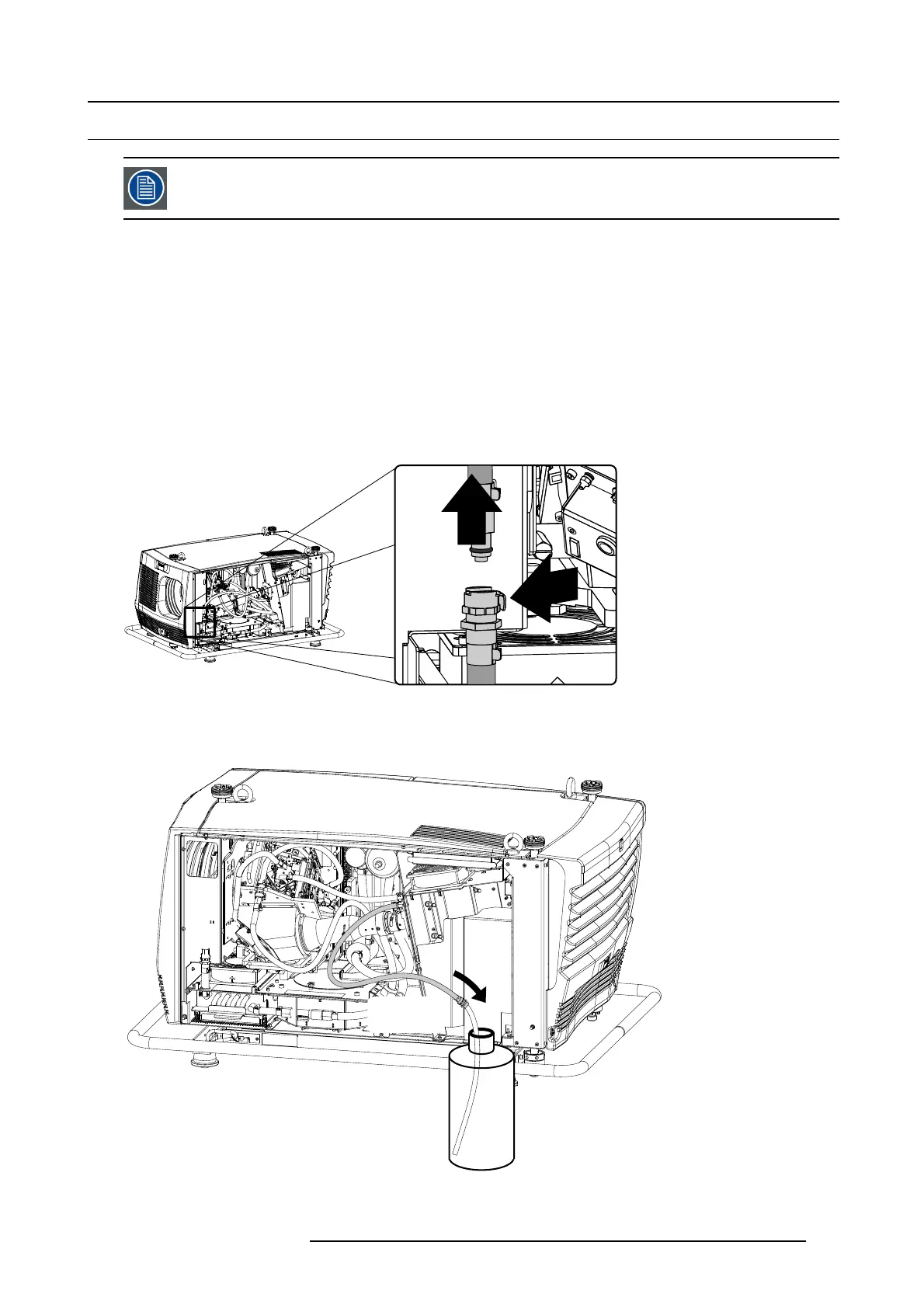

1. Interrupt the liquid cooling circuit by uncoupling the valved fitting at the heat exchanger.
Tip: Sometimes a little cooling liquid will be spilled. Wrap a small cloth around the valved fitting while uncoupling to ab
sorb
the spilled cooling liquid.
2
1
Image 16-10
2. Couple a plastic tube, which contains a female valved fitting, to the exit side of the cooling circuit and lead the tube end to an
empty bottle.
OUT
Image 16-11
Filling complete cooling liqui
d circuit
R59770072 FLM SERIES 19/03/2007 163
