10. Light processor + light pipe assembly
10.3 Installing the light processor
Necessary tools
• 5 mm flat screw driver.
• 10 mm nut driver.
How to install the light processor of the FLM projector ?
1. Hold the light processor by the handles and gently slide the light processor into the compartment of the projector.
Note: The bottom of the light processor is equipped with guides (G) and positioning pins (P).
G
P

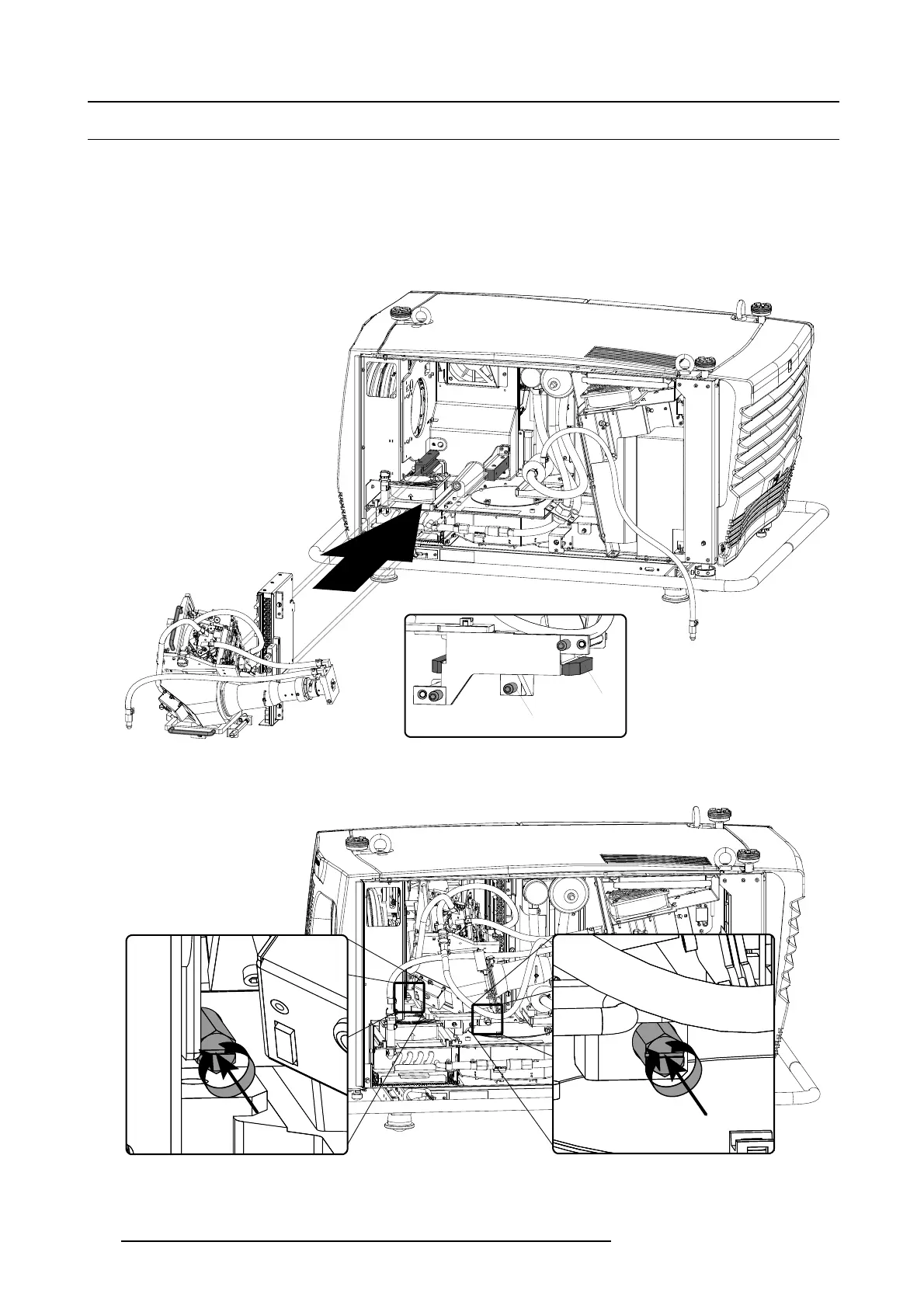

Image 10-6
2. Fasten the two captive screws at the bottom of the
light processor as illustrated. Use a 10 mm nut driver or a 5 mm flat screw
driver.
Image 10-7
106 R59770072 FLM SERIES 19/03/2007
