14. Lens holder
14.1 Removing the lens holder
To remove the lens holder you have to remove the lens, the front cover, the side cover and the light processor
first.
Necessary tools
• Side cutter.
• 5,5 mm nut driver.
•3mmAllenkey.
How to remove the lens holder ?

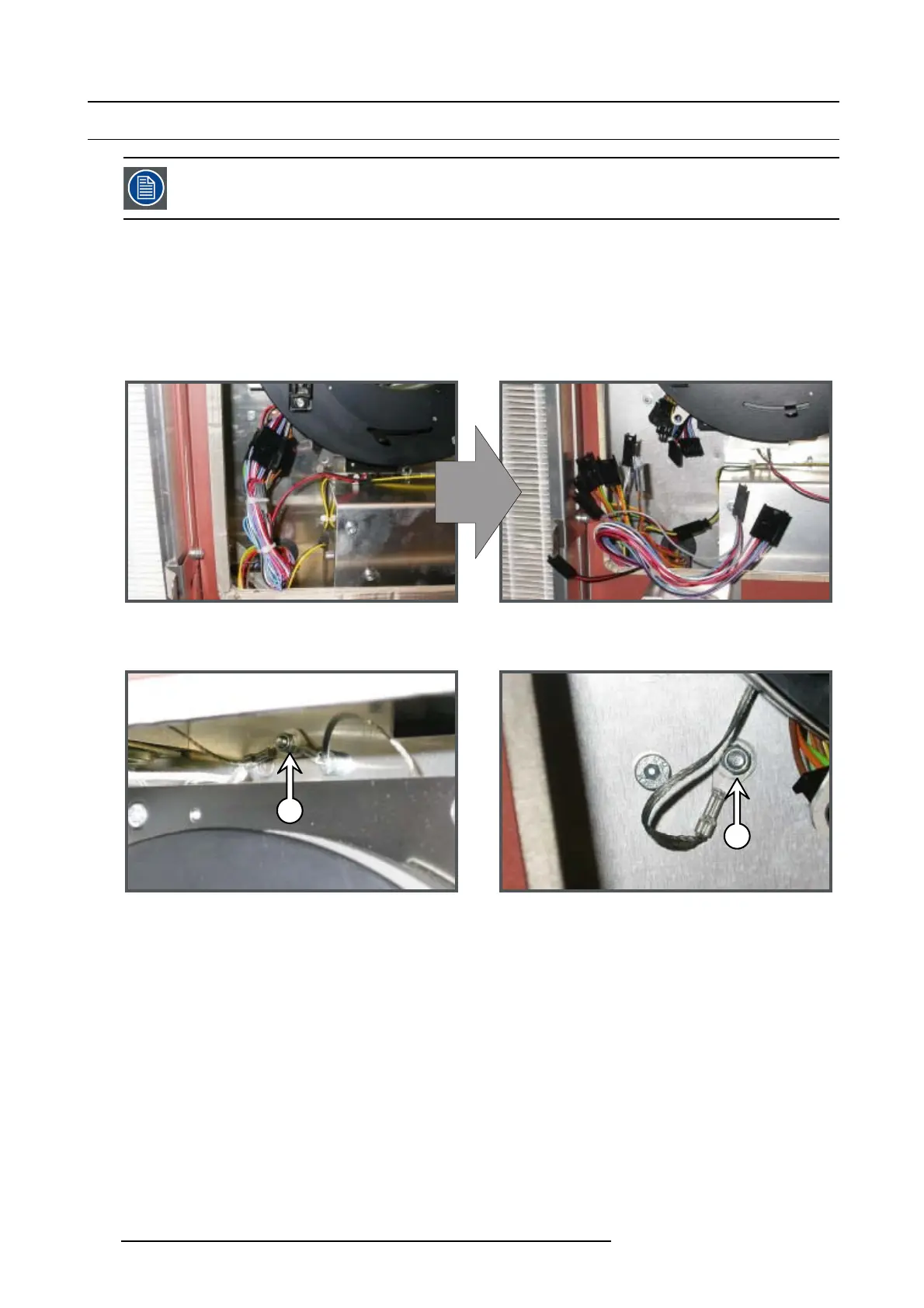

1. Remove the plastic cable ties from the wire three and disconnect all the wire units from the lens holder.
Image 14-2
2. Disconnect the two EMC wire units (A) at the top of the lens holder and the EMC wire unit (B) at the left bottom of the lens holder.
Use a 5,5 mm nut driver.
A
B
Image 14-3
3. Release the 8 hexagon socket screws (F) and remove the lens holder as illustrated. Use a 3 mm Allen key.
130
R59770072 FLM SERIES 19/03/2007
