14. Lens holder
14. LENS HOLDER
About this chapter
This chapter describes how to replace the complete lens holder with build in motors for lens manipulation and the adjustment pro-
cedure.
Functionality
Next to securing the lens, the lens holder makes it possible to shift, tilt and swing the lens plane with respect to the DMD plane of
the projector. This adjustment mechanism ensures that the projected image can be perfectly focused on the screen. Note that the
motors required for horizontal and vertical shift are built-in.
Parts
F
G
H
H
AD
ED E A
D
A
B
C

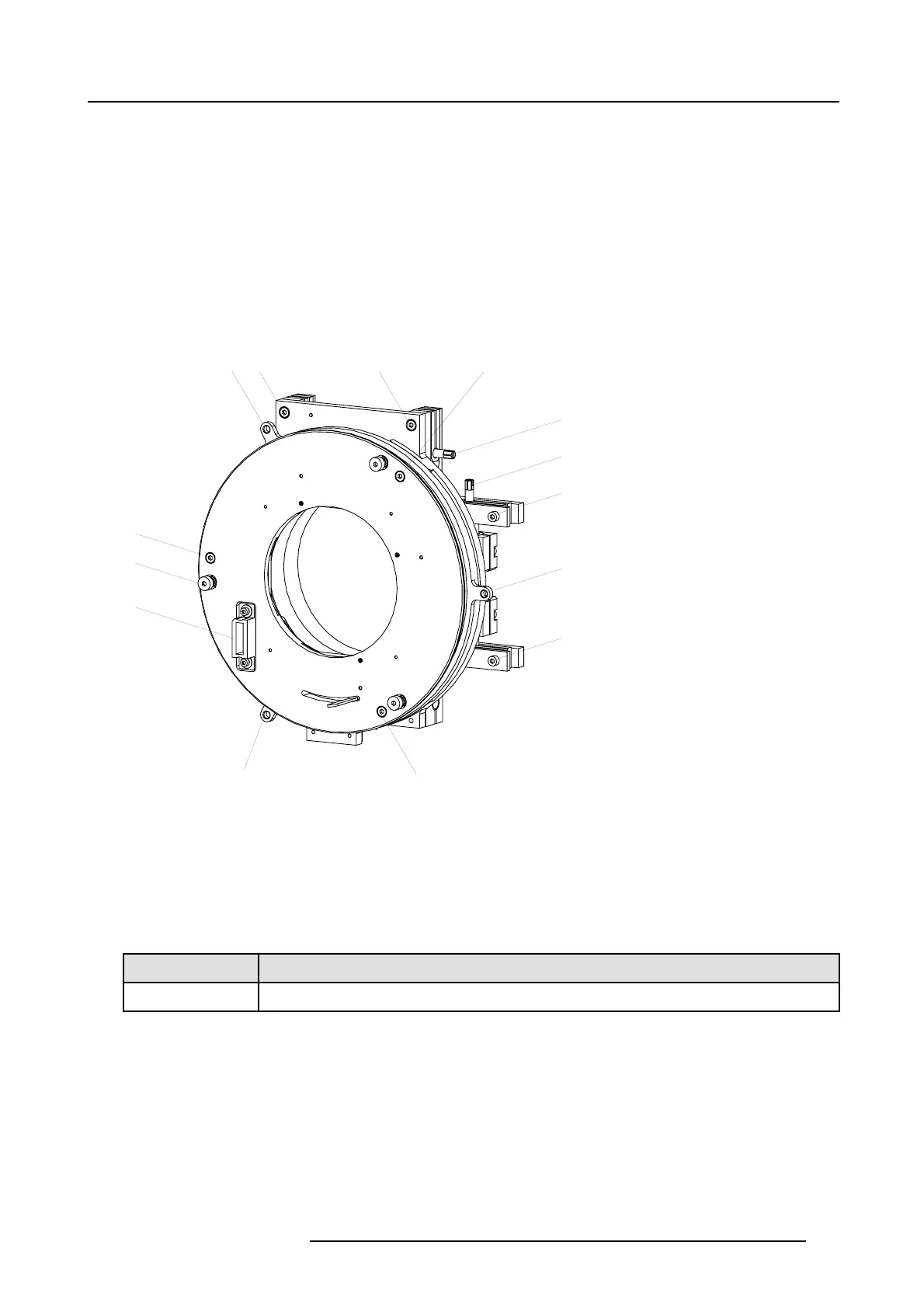

Image 14-1
A Lock screws of the focus adjustment pl
ate.
B Screws with retaining springs for pressuring the focus adjustment plate.
C Lens plug socket (for motorized zoom and focus).
D Focus adjustment plate of the l
ens holder.
E Lock screws of the tilt mechanism.
F Lens holder tilt adjustment screw.
G Lens holder swing adjustm
ent screw.
H Lock screws of the swing mechanism.
Order info
Order No.
Description
R848500K FLM lens holder.
Overview
Removing the lens holder
Installing the lens holder
Adjusting the lens holder
R59770072 FLM SERIES 19/03/2007
129
