24. Fan replacements
24.4.3 Mounting the fan assembly
Necessary tools
•Allenkey3mm
• Flat screwdriver 7 mm
• Nut driver 7 mm
How to mount the fan assembly
1. Insert the fan assembly in the projector with the fixation plate towards the lamp cabinet and the cable to the inside of the projector.

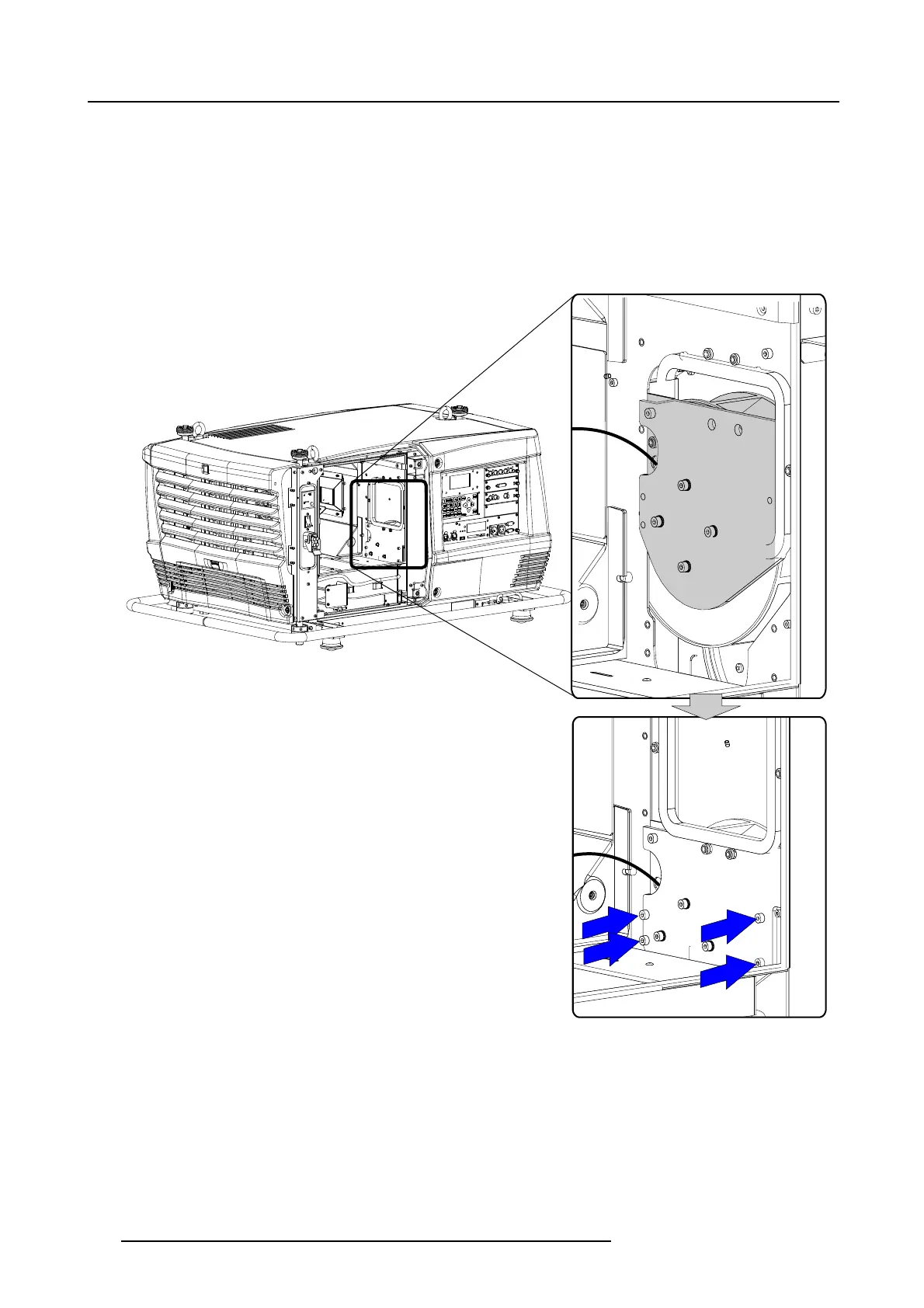

Image 24-34
Mount fan assembly
2. Slide the assembly downwards until the fixation holes matches with the holes in the frame and turn in the 4 screws.
3. Put the side plate of the air channel on its place. Secure by turning in the 3 screws.
254
R59770072 FLM SERIES 19/03/2007
