6. Removal and installation of projector covers
6.8 Installation of the back cover
Necessary tools
7 mm flat screwdriver.
How to install the back cover of the projector?
1. Check if the LPS module is correctly installed.
2. Install the back cover of the projector doing the following:
a) Bring the back cover towards it final position,
b) then gently push the locking studs of the top corners into their receivers

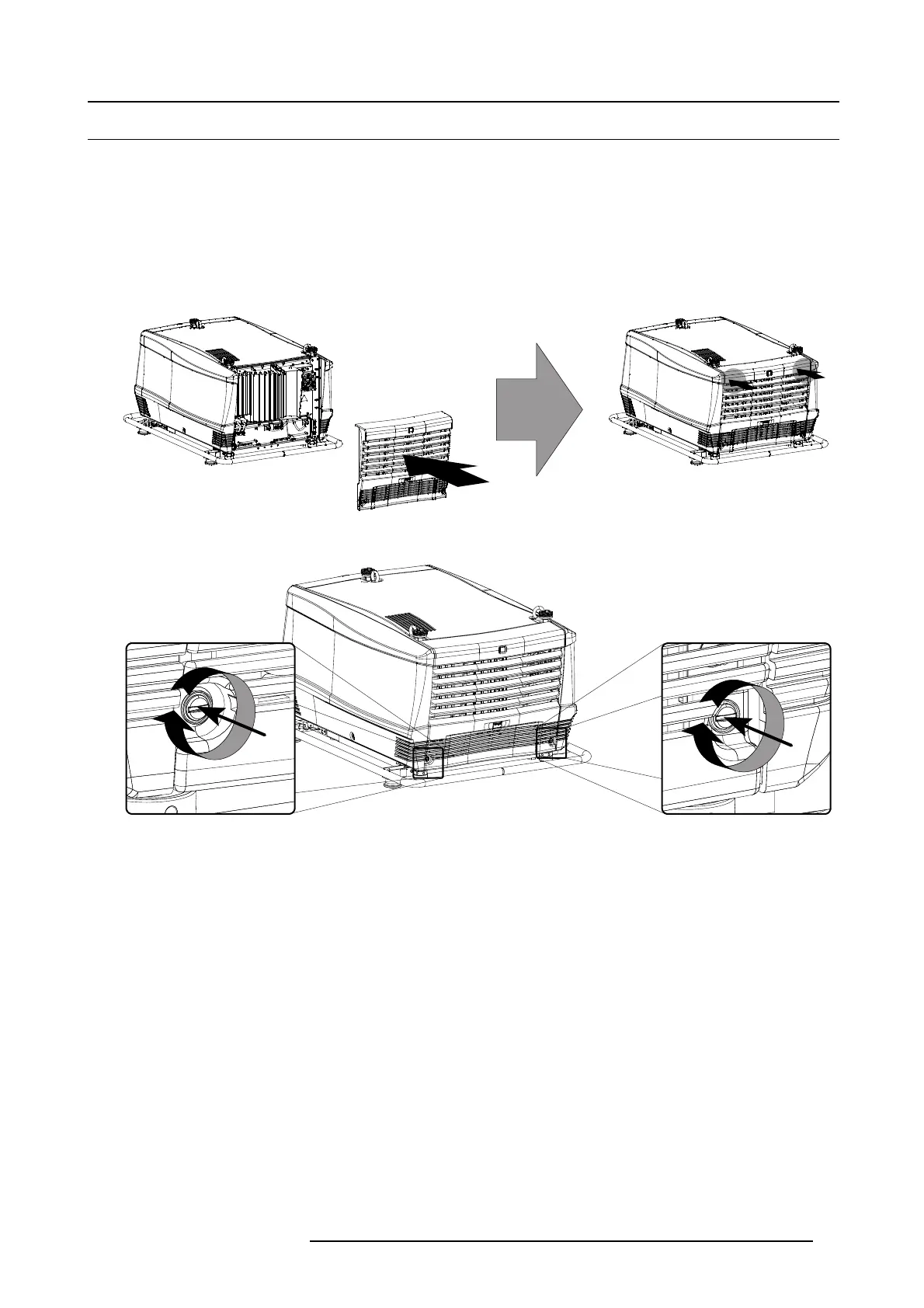

Image 6-13
3. Secure the back cover by locking the captive screws at the bottom corners of the back cover.
Image 6-14
R59770072 FLM SERIES 19/03/2007 79
